性能特点
加热型恒温水浴槽体采用透明的聚碳酸酯或全不锈钢材质，使用简单，应用广泛，例如样品温度控制、分析、材料测试、以及食品检验等。温度稳定性高，带有过温保护和低液位保护功能，安全等级为III级/FL可使用可燃性液体 (符合DIN 12876标准)。强有力的压力泵和循环泵确保浴槽内温度均匀，优化外循环，也可使用泵结合器(配件)控制外循环温度。提供的产品配件有测试玻璃插入物、可调平台、浴槽盖、探针、软管、导热油以及各种适配器等。
功能一目了然
- Pilot ONE 控制器采用即插即用技术
- 精确的温度控制
- 5.7 寸触摸屏显示，带有简洁的导航菜单
- 11 种语言可供选择的操作指南
- 过温保护和低液位保护
- 安全等级 III 级/FL 可使用可燃性液体 (符合DIN 12876标准)
- 强有力的压力泵和吸收泵
- 日历启动，时间，日期编程器
- 2-点校准传感器
- RS232 接口和Pt100传感器

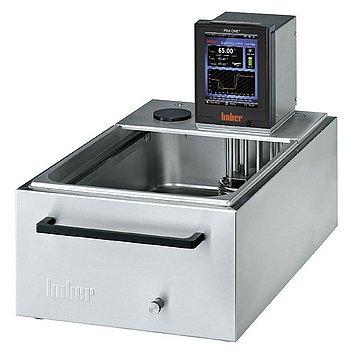

产品图片
控制器
新型多点触摸控制器Pilot ONE带有5.7寸触摸屏，图形用户界面和导航菜单。所有重要的运行参数和温度值都整齐地显示在触摸屏上。新的收藏夹菜单，一键式操作和技术术语使用户操作非常方便，就像使用智能手机一样。集成USB和以太网端口，可与计算机和网络连接，例如：用于远程控制和数据传输。
了解更多
| 加热功率 | 1,5 - 2,1 kW |
| 最大输送泵压 | 27 ; 0,7 |
| 吸入泵的最大输送能力。 | 22 ; 0,4 |
| 泵接口 | M16x1 AG male (Option, #19607) |
| 泵速可调 | 是 |
| 泵特性 | Pressure and suction pump, variable speed |
| 外部传感器接口 | Pt100 |
| 数字接口 | Ethernet, USB (Host u. Device), RS232 |
| 可允许环境温度 | 5...40 |
| 卫生间开口宽度xD/BD | 290 x 329 / 150 |
| 浴液量 | 17 l |
| 最小填充体积 | 12 l |
| 电源 | 200-240V 1~/2~ 50/60Hz |
| 最大电流消耗 | 10 A |
配件
Temperature sensor PT100, closed, Ø 8 mm, 400 mm
Temperature sensor PT100, closed, Ø 6 mm, 200 mm
Temperature sensor PT100, closed, Ø 6 mm, 180 mm
Temperature sensor PT100, open, Ø 8 mm, 170 mm
Insulated stainless steel bath 220B, 20 ltr
Ball valve M16x1
Drain valve, universal
Cooling coil cpl.
Control panel extension cable for Pilot ONE
Control cable RS232 (9 <> 9 pin), 3m
Control cable (3m): CP RS485 / open
Extension cable for temperature sensor
Control cable (3m): AIF / open
Adjustable base for 220B, 225B, K20, K25, 118A
Mounting bracket for wall mounting of Pilot ONE
Wall bracket Pilot ONE
Table stand Pilot ONE
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Hose MT-350-3-M16x1
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Insulated sleeving/price per m D:15
Insulated sleeving internal-Ø 42mm
Bath cover one piece 212B, 215B, K12, K15 - Bath cover front 220B, 225B, K20, K25
Bath cover one piece 220B, 225B, K20, K25
Bath cover back 118A, 220B, 225B, K20, K25
Bath cover back 118A, 220B, 225B, K20, K25
Bath bridge 212B, 215B, 220B, 225B
Heat transfer fluid P20.225/275.50
Heat transfer fluid P20.225/275.50
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.195/235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid MEG
Heat transfer fluid MEG
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Heat transfer fluid M10.120.08
Heat transfer fluid M10.120.08
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
Adapter M16x1 f- M24x1,5 m
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Pump discharge pipe (for diverting flow in bath) for bath thermostats with KISS E, CC-E
Securing nut M16x1
Blank plug for M16x1
Micro hose connector NW 3.2 / M16x1
Pump adaptor cpl.
Test tube rack type 1 made of stainless steel
Test tube rack type 2 made of stainless steel
Test tube rack type 3 made of stainless steel
Test tube rack type 4 made of stainless steel
Cooling Water Control Valve for Pilot One
Algae protection 0,1 ltr
Factory calibration certificate – temperature stability to DIN 12876
Factory calibration certificate – absolute accuracy
Testing protocol FAT (Final Acceptance Test
POKO/ECS interface for units with Pilot ONE
Profibus Gateway DP-V1 (external, for Pilot ONE)
Com.G@te external
Touchpen for Pilot ONE
E-grade OPC-UA
E-grade "Exclusive"
E-grade "Professional"
