Cooling Water Control Valve for Pilot One

Cooling Water Control Valve for Pilot One

类别: 其他
订货号 : 10312

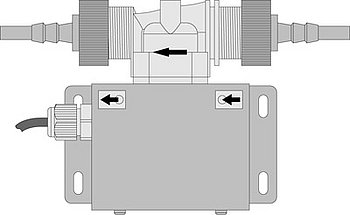

The control valve is connected to a cooliing coil, this can be controlled by the Pilot ONE.



Permissible temperature range: -20°C...+80°C

Max. pressure: 6 bar

Permitted medium: water/ water-MEG mixture

Protection class: IP20

Connection cooling circuit: hose connection 6mm / 8mm

Connection length: 1.8 m

Connection electrical: 15 pin Sub-D port (Pilot ONE)



1.) Heating bath circulators CC-202C, CC-205B, CC-304B, CC-308B and CC315B (cooling coil fitted as standard)

2.) Heating bath circulators CC-104A to CC-118A in combination with optional cooling coil #30554

3.) Wärme-Badthermostate CC-208B to CC-225B in combination with optional cooling coil #30564

4.) Huber devices with cooling coils NW6 or NW8



Please note that this is not suitable for use with KISS circulators!
