性能特点
水浴槽体采用全不锈钢材质，提供经济的解决方案，可将样品直接置于水浴槽中进行恒温试验。适用于样品的温度控制、材料测试、质量控制、分析等。使用环保型天然制冷。自动调节制冷系统的输入输出功率，减少能源消耗，降低废热。带有液位保护和过温保护功能，符合安全等级III 级/FL可使用可燃性液体，符合DIN 12876标准。也可以外接泵借口作外循环。
功能一目了然
- Pilot ONE 控制器采用即插即用技术
- 精确的温度控制
- 5.7 寸触摸屏显示，带有简洁的导航菜单
- 11 种语言可供选择的操作指南
- 过温保护和低液位保护
- 安全等级 III 级/FL 可使用可燃性液体 (符合DIN 12876标准)
- 强有力的压力泵和吸收泵
- 日历启动，时间，日期编程器
- 2-点校准传感器
- RS232 接口和Pt100传感器

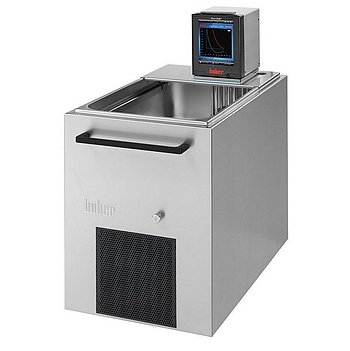

产品图片
控制器
新型多点触摸控制器Pilot ONE带有5.7寸触摸屏，图形用户界面和导航菜单。所有重要的运行参数和温度值都整齐地显示在触摸屏上。新的收藏夹菜单，一键式操作和技术术语使用户操作非常方便，就像使用智能手机一样。集成USB和以太网端口，可与计算机和网络连接，例如：用于远程控制和数据传输。
了解更多
| 加热功率 | 1,8 - 2,1 kW | ||||||||||||
| 制冷功率 |
|
||||||||||||
| 制冷形式 | 风冷，天然制冷剂 | ||||||||||||
| 制冷剂第一级 | R-290 (A3, H220) | ||||||||||||
| 制冷剂量，第1 阶段 | 0,072 |
| 最大输送泵压 | 27 ; 0,7 |
| 吸入泵的最大输送能力。 | 22 ; 0,4 |
| 泵接口 | (Option, #19607) |
| 泵速可调 | 是 |
| 泵特性 | Pressure and suction pump, variable speed |
| 外部传感器接口 | Pt100 |
| 数字接口 | Ethernet, USB (Host u. Device), RS232 |
| 可允许环境温度 | 5...40 |
| 声压级 | 50 |
| 卫生间开口宽度xD/BD | 290 x 329 / 200 |
| 浴液量 | 23,5 l |
| 最小填充体积 | 17 l |
| 电源 | 220-240V 1~/2~ 50/60Hz |
| 最大电流消耗 | 10 + 2 A |
配件
Trolley for K20, K25, 220B, 225B
Temperature sensor PT100, closed, Ø 8 mm, 400 mm
Temperature sensor PT100, closed, Ø 6 mm, 200 mm
Temperature sensor PT100, closed, Ø 6 mm, 180 mm
Temperature sensor PT100, open, Ø 8 mm, 170 mm
Drain valve
Ball valve M16x1
Drain valve, universal
Control panel extension cable for Pilot ONE
Extension cable for temperature sensor
Adjustable base for 220B, 225B, K20, K25, 118A
Mounting bracket for wall mounting of Pilot ONE
Wall bracket Pilot ONE
Table stand Pilot ONE
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Hose MT-350-3-M16x1
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Insulated sleeving/price per m D:15
Insulated sleeving internal-Ø 42mm
Bath cover one piece 212B, 215B, K12, K15 - Bath cover front 220B, 225B, K20, K25
Bath cover one piece 220B, 225B, K20, K25
Bath cover back 118A, 220B, 225B, K20, K25
Bath cover back 118A, 220B, 225B, K20, K25
Bath bridge K12, K15, K20, K25
Heat transfer fluid P20.225/275.50
Heat transfer fluid P20.225/275.50
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.195/235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
Adapter M16x1 f- M24x1,5 m
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Securing nut M16x1
Test tube rack type 1 made of stainless steel
Test tube rack type 2 made of stainless steel
Test tube rack type 3 made of stainless steel
Test tube rack type 4 made of stainless steel
Cooling Water Control Valve for Pilot One
Manually adjustable bypass M16x1 with connection for manometer
Factory calibration certificate – temperature stability to DIN 12876
Factory calibration certificate – absolute accuracy
Testing protocol FAT (Final Acceptance Test
POKO/ECS interface for units with Pilot ONE
Profibus Gateway DP-V1 (external, for Pilot ONE)
Touchpen for Pilot ONE
E-grade OPC-UA
E-grade "Exclusive"
E-grade "Professional"
