性能特点
粘度计专用水浴可以用于毛细管粘度计和密度计。具有最高的温度稳定性，浴槽内温度均匀。在环境温度以下或附近操作，浴槽配有冷却盘管，用于连接冷却水。 配有粘度计夹持器， 提供最好的校准选项。根据要求使用E-grade软件升级可以激活各种功能。
功能一目了然
- Pilot ONE 控制器采用即插即用技术
- 精确的温度控制
- 5.7 寸触摸屏显示，带有简洁的导航菜单
- 11 种语言可供选择的操作指南
- 过温保护和低液位保护
- 安全等级 III 级/FL 可使用可燃性液体 (符合DIN 12876标准)
- 强有力的压力泵和吸收泵
- 日历启动，时间，日期编程器
- 2-点校准传感器
- RS232 接口和Pt100传感器

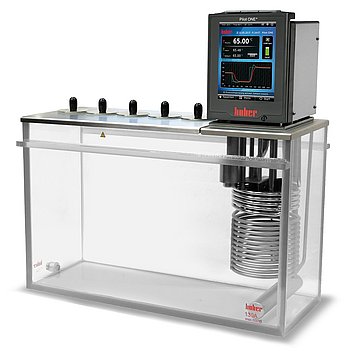

产品图片
控制器
新型多点触摸控制器Pilot ONE带有5.7寸触摸屏，图形用户界面和导航菜单。所有重要的运行参数和温度值都整齐地显示在触摸屏上。新的收藏夹菜单，一键式操作和技术术语使用户操作非常方便，就像使用智能手机一样。集成USB和以太网端口，可与计算机和网络连接，例如：用于远程控制和数据传输。
了解更多
| 加热功率 | 1,5 - 2,1 kW |
| 最大输送泵压 | 27 ; 0,7 |
| 泵接口 | M16x1 AG male |
| 泵速可调 | 是 |
| 泵特性 | Pressure and suction pump, variable speed |
| 外部传感器接口 | Pt100 |
| 数字接口 | Ethernet, USB (Host u. Device), RS232 |
| 可允许环境温度 | 5...40 |
| 卫生间开口宽度xD/BD | ø = 51 / 310 |
| 浴液量 | 30 l |
| 最小填充体积 | 25,5 l |
| 电源 | 200-240V 1~/2~ 50/60Hz |
| 最大电流消耗 | 10 A |
配件
Temperature sensor PT100, closed, Ø 8 mm, 400 mm
Temperature sensor PT100, closed, Ø 6 mm, 200 mm
Temperature sensor PT100, closed, Ø 6 mm, 180 mm
Temperature sensor PT100, open, Ø 8 mm, 170 mm
Drain valve
Ball valve M16x1
Control panel extension cable for Pilot ONE
Control cable RS232 (9 <> 9 pin), 3m
Control cable (3m): CP RS485 / open
Extension cable for temperature sensor
Control cable (3m): AIF / open
Mounting bracket for wall mounting of Pilot ONE
Wall bracket Pilot ONE
Table stand Pilot ONE
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Hose MT-350-3-M16x1
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Insulated sleeving/price per m D:15
Insulated sleeving internal-Ø 42mm
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.195/235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
Adapter M16x1 f- M24x1,5 m
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Pump discharge pipe (for diverting flow in bath) for bath thermostats with KISS E, CC-E
Securing nut M16x1
Blank plug for M16x1
Micro hose connector NW 3.2 / M16x1
Algae protection 0,1 ltr
Factory calibration certificate – temperature stability to DIN 12876
Factory calibration certificate – absolute accuracy
Testing protocol FAT (Final Acceptance Test
POKO/ECS interface for units with Pilot ONE
Profibus Gateway DP-V1 (external, for Pilot ONE)
Com.G@te external
Touchpen for Pilot ONE
E-grade OPC-UA
E-grade "Exclusive"
E-grade "Professional"
