性能特点
加热型恒温水浴槽体采用透明的聚碳酸酯或全不锈钢材质，使用简单，应用广泛，例如样品温度控制、分析、材料测试、以及食品检验等。温度稳定性高，带有过温保护和低液位保护功能，安全等级为III级/FL可使用可燃性液体 (符合DIN 12876标准)。强有力的压力泵和循环泵确保浴槽内温度均匀，优化外循环，也可使用泵结合器(配件)控制外循环温度。提供的产品配件有测试玻璃插入物、可调平台、浴槽盖、探针、软管、导热油以及各种适配器等。
功能一目了然
- KISS 温度调节器
- 精准可靠调节温度
- 大而明亮的OLED显示屏
- 菜单导航操作简单
- 同时显示设定值和实际值、最低温度、最高温度
- 泵、制冷和制热的状态指示
- 过热及次能级保护
- 安全等级 III/FL (DIN 12876)
- USB及RS232接口
- 提供3种颜色: 灰色 (标准)、蓝色、红色

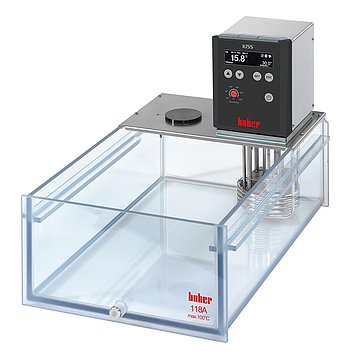

产品图片
控制器
全新 KISS 调节器集现代科技与美观设计于一体，操作直观、便捷。 KISS 型号适用于科研和工业领域的常规工作，配备实用的基础装备，值得信赖。 选配：Pt100 测量传感器接口 #10519，用于显示（非调节）过程温度等参数（仅可由工厂提供，须额外付费）。
了解更多
| 加热功率 | 1,5 - 2,1 kW |
| 最大输送泵压 | 14 ; 0,25 |
| 吸入泵的最大输送能力。 | 10,5 ; 0,17 |
| 泵接口 | M16x1 AG male (Option, #19606) |
| 泵速可调 | 无 |
| 泵特性 | Pressure and suction pump, speed not variable |
| 数字接口 | USB（设备），RS232 接口 |
| 可允许环境温度 | 5...40 |
| 卫生间开口宽度xD/BD | 275 x 321 / 150 |
| 浴液量 | 18 l |
| 最小填充体积 | 11 l |
| 电源 | 200-240V 1~/2~ 50/60Hz |
| 最大电流消耗 | 10 A |
配件
PT100 Sensor connection for KISS
Drain valve
Ball valve M16x1
Cooling coil cpl.
Control cable RS232 (9 <> 9 pin), 3m
Adjustable base for 220B, 225B, K20, K25, 118A
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Hose MT-350-3-M16x1
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Insulated sleeving/price per m D:15
Insulated sleeving internal-Ø 42mm
Bath cover back 118A, 220B, 225B, K20, K25
Bath cover front 118A
Bath cover one piece 118A
Bath bridge 112A, 118A
Heat transfer fluid P20.225/275.50
Heat transfer fluid P20.225/275.50
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.195/235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid MEG
Heat transfer fluid MEG
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
Adapter M16x1 f- M24x1,5 m
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Pump discharge pipe (for diverting flow in bath) for bath thermostats with KISS E, CC-E
Securing nut M16x1
Blank plug for M16x1
Micro hose connector NW 3.2 / M16x1
Pump adaptor cpl.
Test tube rack type 1 made of stainless steel
Test tube rack type 2 made of stainless steel
Test tube rack type 3 made of stainless steel
Test tube rack type 4 made of stainless steel
Algae protection 0,1 ltr
Factory calibration certificate – temperature stability to DIN 12876
Factory calibration certificate – absolute accuracy
Testing protocol FAT (Final Acceptance Test
Colour set RED for KISS Circulators
Colour set BLUE for KISS Circulators
