性能特点

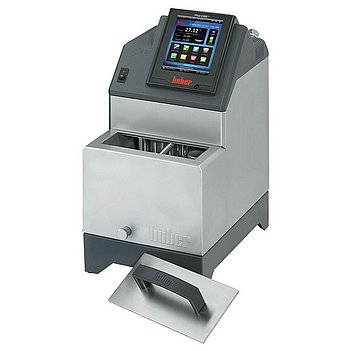

HuberMinistats系列是全球体积最小的冷冻循环油浴。结构紧凑，占地面积小，可置于实验室的通风橱中使用。Ministats系列体积虽小，但功能强大，广泛应用于光度计、折射计、粘度计、蒸馏器、 反应器、以及中间工厂等。主要应用于外循环– 开口槽可以放置小体积的容器用来恒温。功能强大的压力泵和吸收泵流速可调，保证最佳的循环。选配压力传感器可以调节压力，防止泵压过大引起的反应釜或者其他易碎器皿损坏。Ministats系列采用Pilot ONE 控制面板，彩色TFT 显示，简洁的操作向导。模拟接口符合NAMUR标准，选配Com.G@te 模块可实现远程控制与自动控制系统整合。
功能一目了然
- Pilot ONE 控制器采用即插即用技术
- 精确的温度控制
- 5.7 寸触摸屏显示，带有简洁的导航菜单
- 11 种语言可供选择的操作指南
- 过温保护和低液位保护
- 安全等级 III 级/FL 可使用可燃性液体 (符合DIN 12876标准)
- 强有力的压力泵和吸收泵
- 日历启动，时间，日期编程器
- 2-点校准传感器
- RS232 接口和Pt100传感器
产品图片
控制器
新型多点触摸控制器Pilot ONE带有5.7寸触摸屏，图形用户界面和导航菜单。所有重要的运行参数和温度值都整齐地显示在触摸屏上。新的收藏夹菜单，一键式操作和技术术语使用户操作非常方便，就像使用智能手机一样。集成USB和以太网端口，可与计算机和网络连接，例如：用于远程控制和数据传输。
了解更多
| 加热功率 | 0,9 - 1 kW | ||||||||||||
| 制冷功率 |
|
||||||||||||
| 制冷形式 | 风冷，天然制冷剂 | ||||||||||||
| 制冷剂第一级 | R-290 (A3, H220) | ||||||||||||
| 制冷剂量，第1 阶段 | 0,066 |
| 最大输送泵压 | 22 ; 0,7 |
| 吸入泵的最大输送能力。 | 16 ; 0,4 |
| 泵接口 | M16x1 AG male |
| 最大允许粘度 | 50 |
| 泵速可调 | 是 |
| 泵特性 | Pressure and suction pump, variable speed |
| 外部传感器接口 | Pt100 |
| 数字接口 | Ethernet, USB (Host u. Device), RS232 |
| 可允许环境温度 | 5...35 |
| 声压级 | 47 |
| 卫生间开口宽度xD/BD | 178 x 80 / 120 |
| 浴液量 | 2,7 l |
| 最小填充体积 | 2,1 l |
| 电源 | 220-240V 1~/2~ 50/60Hz |
| 最大电流消耗 | 6 A |
配件
Displacement insert Ministat 125 / 125w
Trolley for Ministat 125/125w, Minichiller 280/w, Minichiller 300/w
Calibration insert Ministat 125
Temperature sensor PT100, closed, Ø 8 mm, 400 mm
Temperature sensor PT100, closed, Ø 6 mm, 200 mm
Temperature sensor PT100, closed, Ø 6 mm, 180 mm
Temperature sensor PT100, open, Ø 8 mm, 170 mm
Drain valve
Ball valve M16x1
Drain valve, universal
Control panel extension cable for Pilot ONE
Extension cable for temperature sensor
Mounting bracket for wall mounting of Pilot ONE
Wall bracket Pilot ONE
Table stand Pilot ONE
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Hose MT-350-3-M16x1
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Insulated sleeving/price per m D:15
Insulated sleeving internal-Ø 42mm
Heat transfer fluid P20.225/275.50
Heat transfer fluid P20.225/275.50
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.195/235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid MEG
Heat transfer fluid MEG
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
Adapter M16x1 f- M24x1,5 m
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Securing nut M16x1
Manually adjustable bypass M16x1 with connection for manometer
Factory calibration certificate – temperature stability to DIN 12876
Factory calibration certificate – absolute accuracy
Testing protocol FAT (Final Acceptance Test
POKO/ECS interface for units with Pilot ONE
Profibus Gateway DP-V1 (external, for Pilot ONE)
Com.G@te internal
Touchpen for Pilot ONE
E-grade OPC-UA
E-grade "Exclusive"
E-grade "Professional"
