Acessórios

The POKO/ECS Interface has connections complying with the NAMUR Standard and is fitted as standard on all Unistats. The following interfaces are integrated: ECS external control signal, POKO Volt free contact (programmable).

Calibration bend M24x1,5 with sensor pocket for sensor Ø 6 mm / length 160 mm

for Unistats (tower housing models)

for Unistats (bench top models)

Calibration insert CC-405/w, CC-415/wl, CC-505/wl, CC-508/w, CC-805, CC-902

Also required: #9609

19 mm thick / internal-Ø 19mm

Insulated sleeving for braided hoses

self-adhesive

19 mm thick / internal-Ø 28mm

Insulated sleeving for braided hoses

self-adhesive

19 mm thick / internal-Ø 35mm

Insulated sleeving for braided hoses

self-adhesive

19 mm thick / internal-Ø 42mm

Insulated sleeving for braided hoses

self-adhesive

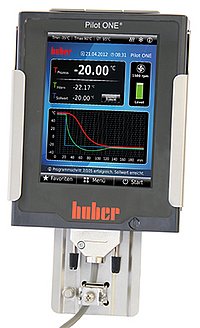

Mounting bracket for wall mounting of Pilot ONE

Displacement insert CC-304B

Dimensions: 125 x 95 x 141 mm (L x W x H)

Temperature sensor PT100, G3/4", for fluid outlet or return

Manually adjustable bypass M30x1,5 for Unistats

Extended temperature range: -60°C ... 200°C, non-insulated.

The bypass is easily bendable.

Manually adjustable bypass M16x1 for Unistats, benchtop models

Extended temperature range: -60°C ... 200°C, non-insulated.

The bypass is easily bendable.

Manually adjustable bypass M24x1,5 for Unistats

Extended temperature range: -60°C ... 200°C, non-insulated.

The bypass is easily bendable.

Manually adjustable bypass M38x1,5 for Unistats

Extended Temperature range: -60°C ... 200°C, non-insulated.

The bypass is easily bendable.

Manually adjustable bypass G3/4 for Unichiller

Extended temperature range: -60°C ... 200°C, non-insulated.

The bypass is easily bendable.

Manually adjustable bypass G1 1/4 for Unichiller

Extended temperature range: -60°C ... 200°C, non-insulated.

The bypass is easily bendable.

CAN Switch for remote operation or external installation:

- distribution switch to connect multiple accessories simultaneously such as the ComG@te, External VPC-Bypass, etc.

- for the remote operation of Huber devices

Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats

Extended temperature range: -60°C ... 200°C, non-insulated.

For this bypass one of the following pressure gauges must be ordered separately:

Manometer 0-1 bar #64191

Manometer 0-2.5 bar #64192

Manometer 0-4 bar #63933

Manometer 0-10 bar #64193

The bypass is easily bendable.

Manually adjustable bypass M24x1,5 with connection for manometer, for Unistats

Extended temperature range: -60°C ... 200°C, non-insulated.

For this bypass one of the following pressure gauges must be ordered separately:

Manometer 0-1 bar #64191

Manometer 0-2.5 bar #64192

Manometer 0-4 bar #63933

Manometer 0-10 bar #64193

The bypass is easily bendable.

The control valve is connected to a cooliing coil, this can be controlled by the Pilot ONE.

Permissible temperature range: -20°C...+80°C

Max. pressure: 6 bar

Permitted medium: water/ water-MEG mixture

Protection class: IP20

Connection cooling circuit: hose connection 6mm / 8mm

Connection length: 1.8 m

Connection electrical: 15 pin Sub-D port (Pilot ONE)

1.) Heating bath circulators CC-202C, CC-205B, CC-304B, CC-308B and CC315B (cooling coil fitted as standard)

2.) Heating bath circulators CC-104A to CC-118A in combination with optional cooling coil #30554

3.) Wärme-Badthermostate CC-208B to CC-225B in combination with optional cooling coil #30564

4.) Huber devices with cooling coils NW6 or NW8

Please note that this is not suitable for use with KISS circulators!

Remote control EEX Panel 15.0"

with stainless steel housing for wall mounting for Huber temperature control units with Pilot ONE.

Explosion protection zones 1 and 21:

ATEX marking

- Gases/vapours: II 2G Ex db eb q [ib] IIC T4 Gb

- Dust: II 2D Ex tb IIIC T120 °C Db

IECEx marking

- Gases/vapours: Ex db eb q [ib] IIC T4 Gb

- Dust: Ex tb IIIC T120 °C Db

- Power Supply: AC 100-230V

- Protection class: IP54

- Weight: 55kg

- Storage: 128 GB SSD hard disk space, 8 GB RAM memory

- Operating system: Windows 10 IoT LTSB 64-bit

- Ambient temperature range: 0 °C to 50 °C

- Ethernet cable, shielded, 25m, CAT6

- Stainless steel housing with built-in POLARIS Panel PC 15" for wall mounting

- Housing material: stainless steel 1.4404

- Protection class: IP54

- Dimensions (WxDxH): 650x150x550mm

Quick-disconnect adaptor M30x1,5

Location: hose side

Temperature range: -90°C...230°C

Disconnect temperature: 20°C

Connection: M30x1,5

Material: 1.4404; HTF contact, 1.4571

Max. pressure at 20°C: 25 bar

Internal diameter: 20 mm

Installation Guide

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick-disconnect coupler M30x1,5

Location: temperature control unit, application

Temperature range: -90°C...230°C

Disconnect temperature: 20°C

Connection: M30x1,5

Material: 1.4404; HTF contact 1.4571

Max. pressure at 20°C: 25 bar

Internal diameter: 20 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Connection for pressure relief device

M30x1,5 female to M30x1,5 male adapter

for connection of a pressure relief device

with a Rp 1/4 connection, thermally decoupled

(as optional accessory for quick disconnect adaptors #10406, #10407)

Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.

The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.

Flow rate measuring device MID, only suitable for conductive heat transfer fluids:

- Temperature range: -40...130°C

- Flow rate: 1...300 l/min

- Measurement accuracy: 3,7...0,7 %

Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.

The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.

Flow rate measuring device MID, only suitable for conductive heat transfer fluids:

- Temperature range: -40...130°C

- Flow rate: 0,2...100 l/min

- Measurement accuracy: 8...0,6 %

The international guarantee from Huber offers worldwide guarantee coverage

for distributors, OEM partners etc.

Your advantages:

- Comprehensive care free package

- Professional repair work

- Fast execution of guarantee repairs

- Predictable guarantee costs

- Minimising downtime

- Simple handling of guarantee cases

- No further costs for repairs during guarantee

The E-grade "Explore" for Unistats is a development tool for chemical processes which gives access to the following values:

- Performance: Heating or cooling capacity of the system

- Temperature values: Setpoint, internal, process, return

- Temperature differences: ?T internal-return, ?T process-return, ?T process-internal

- Circulation pump: Pressure / speed (depending on model)

The Profibus Gateway DP-V1 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.

The Profibus Gateway DP-V1 has a configurable range of functions, the PLC must therefore support acyclic configuration.

for units with Pilot ONE controller

Power Supply: 100-240V 1~/2~ 50/60Hz

Accessories (included): Mounting Bracket, Connection cable, Power cable

Requirement: Controller (SPS) must be capable for DPV1

Download: Device configuration file

Hose NW12

EPDM with Braiding

Temperature range: -40°C...100°C

Length: variable

Max. pressure at 20°C: 20 bar

Internal diameter: 12 mm

Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with OLÉ controller (only for measuring, no external temperature control).

Only available factory-fitted (or retrofitting by a Huber Service partner).

Quick-disconnect adaptor M24x1,5

Location: temperature control unit, application

Temperature range: -75°C...230°C

Disconnect temperature: 20°C

Connection: M24x1,5

Material: 1.4307 or better

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick-disconnect coupler M24x1,5

Location: hose side

Temperature range: -75°C...230°C

Disconnect temperature: 20°C

Connection: M24x1,5

Material: 1.4307 or better

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

The OPC UA (OPC Unified Architecture) communication protocol semantically describes data and thus allows a data exchange between automation systems without the need to program a driver. Huber temperature control units with Pilot ONE can already communicate via the modern OPC UA protocol by using the E-grade "OPC UA".

Trolley for Unichiller 007/w, 010/w, 012w, 015w, P007/w, P010/w, P012w, P015w (and -H models)

Trolley for Unichiller 012, 015, 022w, 025w, P012, P015, P022w, P025w (and -H models)

Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.

The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.

Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:

- Temperature range: -100...350°C

- Flow rate: 6...60 l/min

- Measurement accuracy: 2 %

Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.

The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.

Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:

- Temperature range: -100...350°C

- Flow rate: 15...150 l/min

- Measurement accuracy: 2 %

Temperature range depends on mixing ratio

Material: Monoethylenglycol, concentrate

Mixing ratio: 50% MEG / 50% water

Colour: light yellow, clear

Viscosity at 25°C: approx. 2 mm²/s

Can: 5 l

Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with KISS controller (only for measuring, no external temperature control).

Only available factory-fitted (or retrofitting by a Huber Service partner).

POKO/ECS Interface for units with OLÈ controller

only available factory-fitted (or retrofitting by a Huber Service partner)

Trolley for Unistat 405/w Unistat Tango

Hose NW8

Material: NBR

Temperature range: -30°C...100°C

Length: variable

Max. pressure at 20°C: 30 bar

Internal diameter: 8 mm

Outer diameter: 16.3 mm

Hose NW10

Material: NBR

Temperature range: -30°C...100°C

Length: variable

Max. pressure at 20°C: 30 bar

Internal diameter: 10 mm

Outer diameter: 17.6 mm

Quick- disconnect coupler M16x1

Temperature range: -45°C...220°C

Connection: M16x1 male

location: hose side

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick- disconnect adaptor M16x1

Temperature range: -45°C...220°C

Connection: M16x1 male

Location: Temperature control unit, application

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick-disconnect coupler M24x1,5

Location: hose side

Temperature range: -45°C...220°C

Disconnect temperature: 20°C

Connection: M24x1,5

Material: 1.4307 or better

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick-disconnect adaptor M24x1,5

Location: temperature control unit, application

Temperature range: -45°C...220°C

Disconnect temperature: 20°C

Connection: M24x1,5

Material: 1.4307 or better

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick- disconnect coupler M16x1

Temperature range: -75°C...230°C

Connection: M16x1 male

Location: hose side

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Quick- disconnect adaptor M16x1

Temperature range: -75°C...230°C

Connection: M16x1 male

Location: Temperature control unit, application

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Note:

When using ethanol as heat transfer fluid: min. working temperature limit -60°C.

Manually adjustable bypass M16x1 with connection for manometer, for Unistats

Temperature range: -60°C ... 200°C, insulated.

For this bypass one of the following pressure gauges must be ordered separately:

Manometer 0-1 bar #64190

Manometer 0-2.5 bar #64189

Manometer 0-4 bar #54398

Manometer 0-10 bar #54399

The bypass is easily bendable.

Hose MT-140-1-G3/4

Metal

Temperature range: -40°C...140°C

Length: 100 cm

Connection: G3/4

Nominal width: 19 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-1,5-G3/4

Metal

Temperature range: -40°C...140°C

Length: 150 cm

Connection: G3/4

Nominal width: 19 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-2-G3/4

Metal

Temperature range: -40°C...140°C

Length: 200 cm

Connection: G3/4

Nominal width: 19 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-3-G3/4

Metal

Temperature range: -40°C...140°C

Length: 300 cm

Connection: G3/4

Nominal width: 19 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-1-G1

Metal

Temperature range: -40°C...140°C

Length: 100 cm

Connection: G1

Nominal width: 25 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-1,5-G1

Metal

Temperature range: -40°C...140°C

Length: 150 cm

Connection: G1

Nominal width: 25 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-2-G1

Metal

Temperature range: -40°C...140°C

Length: 200 cm

Connection: G1

Nominal width: 25 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-3-G1

Metal

Temperature range: -40°C...140°C

Length: 300 cm

Connection: G1

Nominal width: 25 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-1-G1 1/4

Metal

Temperature range: -40°C...140°C

Length: 100 cm

Connection: G1 1/4

Nominal width: 32 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-1,5-G1 1/4

Metal

Temperature range: -40°C...140°C

Length: 150 cm

Connection: G1 1/4

Nominal width: 32 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-2-G1 1/4

Metal

Temperature range: -40°C...140°C

Length: 200 cm

Connection: G1 1/4

Nominal width: 32 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Hose MT-140-3-G1 1/4

Metal

Temperature range: -40°C...140°C

Length: 300 cm

Connection: G1 1/4

Nominal width: 32 mm

Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps

Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).

Unipump I DC M24x1,5

Temperature range: -120 ... 300 °C

Pressure pump max.: 55 l/min / 1,0 bar

Pump connection: M24x1,5

Power supply: 208-240V 1~ 50/60Hz

Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).

Unipump IV MC M38x1,5

Temperature range: -120 ... 350 °C

Pressure pump max. 110 l/min / 2 bar

Pump connection: M38x1,5 male

Power supply: 380V- 480V 3~ 50/60Hz

Dimensions: 275x420x295 mm

Hose MT-200-1-Flange DN40

Metal

Temperature range: -90°C...200°C

Length: 100 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 40 mm

Insulation: Foam insulation, shrinked tubing as end caps

Hose MT-200-1,5-Flange DN40

Metal

Temperature range: -90°C...200°C

Length: 150 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 40 mm

Insulation: Foam insulation, shrinked tubing as end caps

Hose MT-200-2-Flange DN40

Metal

Temperature range: -90°C...200°C

Length: 200 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 40 mm

Insulation: Foam insulation, shrinked tubing as end caps

Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).

Unipump V MC M38x1,5

Temperature range: -120 ... 350 °C

Pressure pump max. 120 l/min / 4 bar

Pump connection: M38x1,5 male

Power supply: 380V- 480V 3~ 50/60Hz

Dimensions: 275x420x295 mm

Hose MT-200-3-Flange DN40

Metal

Temperature range: -90°C...200°C

Length: 300 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 40 mm

Insulation: Foam insulation, shrinked tubing as end caps

Hose MT-200-1-Flange DN50

Metal

Temperature range: -90°C...200°C

Length: 100 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 50 mm

Insulation: Foam insulation, shrinked tubing as end caps

Hose MT-200-1,5-Flange DN50

Metal

Temperature range: -90°C...200°C

Length: 150 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 50 mm

Insulation: Foam insulation, shrinked tubing as end caps

Hose MT-200-2-Flange DN50

Metal

Temperature range: -90°C...200°C

Length: 200 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 50 mm

Insulation: Foam insulation, shrinked tubing as end caps

Hose MT-200-3-Flange DN50

Metal

Temperature range: -90°C...200°C

Length: 300 cm

Connection: Flange EN1092-1 Typ 11

Nominal width: 50 mm

Insulation: Foam insulation, shrinked tubing as end caps

Securing nut M38x1,5

Securing nut M24x1,5

Holder for immersion coolers

TC45/-E, TC100/-E

for mounting on bath

Control panel extension cable for Pilot ONE for using the controller as remote control (without RS232), length 3m

(Using #16160 as remote control does not allow communication via RS232. If required, please use #56196.)

Hose for cooling water PZ-90-1-G1/2

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 100 cm

Connection: G1/2

Max. pressure at 20°C: 10 bar

Internal diameter: 15 mm

Hose for cooling water PZ-90-1,5-G1/2

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 150 cm

Connection: G1/2

Max. pressure at 20°C: 10 bar

Internal diameter: 15 mm

Hose for cooling water PZ-90-2-G1/2

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 200 cm

Connection: G1/2

Max. pressure at 20°C: 10 bar

Internal diameter: 15 mm

Hose for cooling water PZ-90-1-G3/4

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 100 cm

Connection: G3/4

Max. pressure at 20°C: 10 bar

Internal diameter: 20 mm

Hose for cooling water PZ-90-1,5-G3/4

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 150 cm

Connection: G3/4

Max. Pressure at 20°C: 10 bar

Internal diameter: 20 mm

Hose for cooling water PZ-90-2-G3/4

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 200 cm

Connection: G3/4

Max. pressure at 20°C: 10 bar

Internal diameter: 20 mm

Hose for cooling water PZ-90-1-G1

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 100 cm

Connection: G1

Max. pressure at 20°C: 10 bar

Internal diameter: 25 mm

Hose for cooling water PZ-90-1,5-G1

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 150 cm

Connection: G1

Max. pressure at 20°C: 10 bar

Internal diameter: 25 mm

Hose for cooling water PZ-90-2-G1

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 200 cm

Connection: G1

Max. pressure at 20°C: 10 bar

Internal diameter: 25 mm

Polycarbonate bath 130A

Bath opening (WxD): 480x180 mm

Bath depth: 312 mm

Bath volume: 30 l

Dimensions (WxDxH): 500x200x322 mm

Insulated sleeving internal-Ø 22mm

13mm thick

Hose for cooling water PZ-90-1-G1 1/4"

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 100 cm

Connection: G1 1/4

Max. pressure at 20°C: 6 bar

Internal diameter: 32 mm

Hose for cooling water PZ-90-1,5-G1 1/4"

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 150 cm

Connection: G1 1/4

Max. pressure at 20°C: 6 bar

Internal diameter: 32 mm

Hose for cooling water PZ-100-2-G1 1/4"

HDPE with Braiding

Temperature range: -20°C...90°C

Length: 200 cm

Connection: G1 1/4

Max. pressure at 20°C: 6 bar

Internal diameter: 32 mm

Insulated sleeving internal-Ø 28mm

13mm thick

Bath bridge 106A, 108A, 110A

Bath bridge 112A, 118A

Bath bridge 208B

Bath bridge 212B, 215B, 220B, 225B

Bath bridge K12, K15, K20, K25

Bath cover one piece 208B

Bath cover one piece 212B, 215B, K12, K15 - Bath cover front 220B, 225B, K20, K25

Bath cover one piece 220B, 225B, K20, K25

Pump adaptor cpl.

for KISS E, CC-E and with baths 106A to 118A

incl. hose connectors NW12

Pump adaptor cpl.

for KISS E, CC-E and baths 208B to 225B and K12 to K25

incl. hose connectors NW12

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 220-240V 1~/2~ 50/60Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 110-120V 1~ 50/60Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 220-240V 1~/2~ 50/60Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 110-120V 1~ 50/60 Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 110-120V 1~ 50/60 Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 230V 1~ 50/60 Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 220-240V 1~/2~ 50/60Hz)

The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.

(Power Supply: 110-120V 1~ 50/60 Hz)

Hose connection 1/2" female to 3/8"

Hose connections 3/4" female to 1/2"

Polycarbonate bath 112A

Bath opening (WxD): 303x342 mm

Bath depth: 150 mm

Bath volume: 12 l

Dimensions (WxDxH): 333x358x166 mm

Polycarbonate bath 118A

Bath opening (WxD): 303x502 mm

Bath depth: 150 mm

Bath volume: 18 l

Dimensions (WxDxH): 333x518x166 mm

Polycarbonate bath 106A

Bath opening (WxD): 130x290 mm

Bath depth: 150 mm

Bath volume: 6 l

Dimensions (WxDxH): 142x305x161 mm

Polycarbonate bath 108A

Bath opening (WxD): 130x390 mm

Bath depth: 150 mm

Bath volume: 8 l

Dimensions (WxDxH): 142x405x161 mm

Polycarbonate bath 110A

Bath opening (WxD): 130x490 mm

Bath depth: 150 mm

Bath volume: 10 l

Dimensions (WxDxH): 142x505x161 mm

Screw clamp for KISS E, CC-E

Cooling coil cpl. for KISS E and CC-E with baths 104A to 118A

Cooling coil cpl.

for KISS E, CC-E with baths 208B to 225B

Com.G@te internal

Petite Fleur, Grande Fleur, Chili, Unichillers with Pilot ONE, Ministats, CC-300BX to CC-906w

The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), RS485 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-­Interface 0/4-20 mA or 0-10 V (bi-directional).

For easy filling of the temperature control unit with heat transfer fluid directly from the canister.

With drain valve, 23 mm, ventilated.

Displacement insert CC-308B

Dimensions: 124 x 98 x 141 mm (L x W x H)

Ball valve M24x1,5

Temperature range: -60°C ... +200°C (max. 10 bar at +175°C)

Ball valve, M38x1,5

Temperature range: -60 ... +200°C (max. 10 bar at +175°C)

Ball valve M30x1,5

Temperature range: -60°C ... +200°C (max. 10 bar at +175°C)

Ball valve M16x1

Temperature range: -60°C ... +200°C (max. 10 bar at +175°C)

2-way Header, M16x1

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10159 is included.

3-way Header, M16x1

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10159 is included.

4-way Header, M16x1

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

5-way Header, M16x1

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

2-way Header, M38x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10703 is included.

3-way Header M30x1,5

Temperature range: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit, a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10450 is included.

4-way Header, M30x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

Pentagon 5 port - manifold

with CPC Quickconnects, valved coupling

high grade synthetic material -40 ... +80 °C

chemically resistant and thermally robust

Max. pressure: 1.5 bar

Tube connection:

Inlet: 3/8" (approx. 10 mm)

Outlet: 1/4" (approx. 8 mm)

Hose, pressureless, FKM NW12

Temperature range: -20°C...180°C

Length: variable

Max. pressure at 20°C: low pressure

Internal diameter: 12 mm

Material: FKM

2-way Header, M24x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10538 is included.

4-way Header, M24x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

2-way Header, M30x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10450 is included.

3-way Header, M38x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

For direct mounting on the temperature control unit, the 90° ellbow adaptor #10703 is included.

4-way Header, M38x1,5

Temp.: -80 to 300°C (max 6 bar at 300°C)

Including universal mounting device for fixation at site.

To connect the multiway header to the temperature control unit,

a hose in corresponding length is required.

2-way Header with ball valves, M16x1

Temperature range: -20 ... +140°C (max. 6 bar at +140°C)

3-way Header with ball valves, M16x1

Temperature range: -20 ... +140°C (max. 6 bar at +140°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

4-way Header with ball valves, M16x1

Temperature range: -20 ... +140°C (max. 6 bar at +140°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

5-way Header with ball valves, M16x1

Temperature range: -20 ... +140°C (max. 6 bar at +140°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

2-way Header with ball valves, M24x1,5

Temperature range: -10 ... +180°C (max. 60 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

4-way Header with ball valves, M24x1,5

Temperature range: -10 ... +180°C (max. 20 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

2-way Header with ball valves, M30x1,5

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

3-way Header with ball valves, M30x1,5

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

4-way Header with ball valves, M30x1,5

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

2-way Header with ball valves, M38x1,5

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

3-way Header with ball valves, M38x1,5

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

4-way Header with ball valves, M38x1,5

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

Octagon 8 port - manifold

with CPC Quickconnects, valved coupling

high grade synthetic material -40 ... +80 °C

chemically resistant and thermally robust

Max. pressure: 1.5 bar

Tube connection:

Inlet: 3/8" (approx. 10 mm)

Outlet: 1/4" (approx. 8 mm)

Hose connector M16x1, NW10

2-way Valve system 3/4"

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

3-way Valve system 3/4"

Temperature range: -10 ... +180°C (max. 6 bar at +180°C)

With universal mounting bracket for wall mounting of the manifold.

A hose of suitable length is required to connect between the manifold and the temperature control unit.

Cooling coil cpl.

for Chili

Bath cover one piece 106A

Bath cover one piece 108A

Bath cover one piece 110A

Bath cover one piece 112A

Insulated sleeving / f. tube NW12

internal-Ø 17 mm 12mm thick, price per meter

Adjustable base for 220B, 225B, K20, K25, 118A

Adjustable base for 212B, 215B, K12, K15

Adjustable base for 112A

Bath cover one piece 212B, 215B, K12, K15

suitable for use with adjustable base #40763

Bath cover back 118A, 220B, 225B, K20, K25

suitable for use with adjustable base #40681

Bath cover one piece 112A

suitable for use with adjustable base #40764

Bath cover front 118A

Plug 3-pin for ECS/LEVEL

Plug 3-pin for POKO

Unistat Control ONE

electronic module with insertion slot for Pilot ONE controller for Unistats

(Pilot ONE not included)

Controller Pilot ONE for CC Circulators, Unichiller, Unistats

Glass adapter for rotary evaporator

50mm flange to GL14

Glass accessory set for cold trap CT50 Single OLÉ

consisting of:

#503344 - glass trap body

#503345 - 3 way vacuum stopcock adaptor

#503346 - 1-ltr receiver flask

#503347 - quick release clamp 100 mm

#504544 - O-Ring DN100

M16x1 male thread to G3/4 female thread

USB control cable

from: controller Pilot ONE, Mini-USB

to: PC / Notebook, USB Type A

Length 3m

for data recording, data communication and firmware updates

RS232 control cable

from: Huber-Unit, 15 pin Sub-D plug (male)

to: PC / Notebook, 9 pin Sub-D socket (female)

Length 3m

This cable is required to use the 15 pins RS232 interface on Unistat models.

Touchpen Set for Pilot ONE controller for comfortable touchscreen operation with protective gloves. The set includes the touch pen and a pen holder (self adhesive) with a flexible cord.

Securing nut M30x1,5

Stainless Steel Bath (insulated) 215B

Width bath opening WxD: 290x320 mm

Bath depth: 200 mm

Bath volume: 15 l

Overall dimensions WxDxH: 350x375x256 mm

All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.

Stainless Steel Bath (insulated) 225B

Width bath opening WxD: 290x500 mm

Bath depth: 200 mm

Bath volume: 25 l

Overall dimensions WxDxH: 350x555x256 mm

All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.

Bath cover back 118A, 220B, 225B, K20, K25

Drain valve

for polycarbonate baths 112A, 118A, 130A

connection screw M12x1.5

Test tube rack type A made of polycarbonate for 106A to 110A, Immersion depth 50 mm, Bore holes 12 x Ø22

Test tube rack type B made of polycarbonate for 106A to 110A, Immersion depth

55 mm, Bore holes 20 x Ø17

Test tube rack type C made of polycarbonate for 106A to 110A, Immersion depth 95 mm, Bore holes 20 x Ø17

Test tube rack type D made of polycarbonate for 106A to 110A, Immersion depth 45 mm (Hemolyses), Bore holes 30 x Ø13

Test tube rack type E made of polycarbonate for 106A to 110A, Immersion depth 50 mm, Bore holes 6 x Ø30

Test tube rack type F made of polycarbonate for 106A to 110A,

Immersion depth 25 mm (Eppendorf),

Bore holes 36 x Ø11

Test tube rack type 1 made of stainless steel

for 112A, 118A, 212B to 225B and K12 to K25

Immersion depth 100 mm

Bore holes 36 x Ø18

Test tube rack type 2 made of stainless steel

for 112A, 118A, 212B to 225B and K12 to K25

Immersion depth 70 mm

Bore holes 45 x Ø13

Test tube rack type 3 made of stainless steel

for 112A, 118A, 212B to 225B and K12 to K25

Immersion depth 100 mm

Bore holes 46 x Ø18

Test tube rack type 4 made of stainless steel

for 112A, 118A, 212B to 225B and K12 to K25

Immersoin depth 70 mm

Bore holes 58 x Ø13

Displacement insert CC-205B

Dimensions: 100 x 85 x 133 mm (L x W x H)

Displacement insert CC-315B

Dimensions: 260 x 135 x 185 mm (L x W x H)

Displacement insert CC-510w, CC-515w, CC-520, CC-520w, CC-525w, CC-820, CC-820w

Dimensions: 265 x 145 x 185 mm (L x W x H)

Displacement insert CC-510, CC-515, CC-905, CC-905w, CC-906w

Dimensions: 245 x 240 x 189 mm (L x W x H)

Stainless steel tank 5,5 ltr/210x282x205mm

standart dimensions

drain point on short side

Stainless steel tank 11 ltr / 250x420x205mm

standart dimensions

drain point on short side

Stainless steel tank 22 ltr / 370x520x205mm

standart dimensions

drain point on short side

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Sensor: closed, external

D: 8 mm, 400mm

cable: 1.5 m

Hose, pressureless, PVC-60-NW12

PVC

Temperature range: -20°C...60°C

Nominal width: 12 mm

Hose, pressureless, PVC-60-NW8 PVC

Temperature range: -20°C...60°C

Nominal width: 8 mm

hose, pressureless, PVC NW3,2

Temperature range: -20°C...60°C

Length: variable

Max. pressure at 20°C: low pressure

Internal diameter: 3,2 mm

Material: PVC

Hose, pressureless, NBR NW12

Temperature range: -25°C...110°C

Length: variable

Max. pressure at 20°C: low pressure

Internal diameter: 12 mm

Material: NBR

Hose, pressureless, NBR NW8

Temperature range: -25°C...110°C

Length: variable

Max. pressure at 20°C: low pressure

Internal diameter: 8 mm

Material: NBR

Hose, pressureless, S-180-NW12

Silicon

min. temp.: -40°C; max. temp.: 180°C

nominal width: 12 mm

Silicon hoses are not suitable for heat transfer fluids which contain Silicon.

Please check the safety data sheet of the planned heat transfer fluid before using it.

Hose, pressureless, S-180-NW8

Silicon

min. temp.: -40°C; max. temp.: 180°C

nominal width: 8 mm

Silicon hoses are not suitable for heat transfer fluids which contain Silicon.

Please check the safety data sheet of the planned heat transfer fluid before using it.

hose, pressureless, FKM NW8

Temperature range: -20°C...180°C

Length: variable

Max. pressure at 20°C: low pressure

Internal diameter: 8 mm

Material: FKM

Insulated sleeving/price per m D:15

Insulated sleeving

Hose MT-350-1-M16x1

Metal

Temperature range: -100°C...350°C

Length: 100 cm

Connection: M16x1

Nominal width: 12 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

Hose MT-350-1,5-M16x1

Metal

Temperature range: -100°C...350°C

Length: 150 cm

Connection: M16x1

Nominal width: 12 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

Hose connector M16x1, NW 8

Hose connector M16x1, NW 12

Blank plug for M16x1

Securing nut M16x1

Micro hose connector NW 3.2 / M16x1

Ball valve M16x1

Temperature range: -20°C ... +90°C

(max. 6 bar at +90°C)

Sensor : closed Ø 6 mm, 200 mm

with hand grip (standart cable length 1,5 m)

Calibration insert CC-315B

Also required: #9608

Hose MT-350-2-M16x1

Metal

Temperature range: -100°C...350°C

Length: 200 cm

Connection: M16x1

Nominal width: 12 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

Sensor: closed, external

D: 6 mm, 180mm

cable: 1.5 m

RS232 control cable

from: Huber-Unit / Com.G@te, 9 pin Sub-D plug (male)

to: PC / Notebook, 9 pin Sub-D socket (female)

Length 3m

Calibration insert CC-510, CC-515, CC-905, CC-905w, CC-906w

Also required: #9609

Float switch in sight glass Unistat

for extended safety, with cable and connector plug

for level socket on Com.G@te #6915

Heat transfer fluid P20.190.40

Temperature range for:

- open/closed systems: 20°C...190°C

Material: mineral oil

Colour: light yellow

Viscosity at 25°C: 40 mm²/s

Can: 5 l

Heat transfer fluid P20.190.40

Temperature range for:

- open/closed systems: 20°C...190°C

Material: mineral oil

Colour: light yellow

Viscosity at 25°C: 40 mm²/s

Can: 20 l

Heat transfer fluid P20.225/275.50

Temperature range for:

- open/closed systems: 20°C...225°C

- Unistats (only closed): 20°C...275°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 50 mm²/s

Can: 5 l

Heat transfer fluid P20.225/275.50

Temperature range for:

- open/closed systems: 20°C...225°C

- Unistats (only closed): 20°C...275°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 50 mm²/s

Can: 10 l

Heat transfer fluid M20.195/235.20

Temperature range for:

- open/closed systems: -20°C...195°C

- Unistats (only closed): -20°C...235°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 20 mm²/s

Can: 5 l

Heat transfer fluid M20.195/235.20

Temperature range for:

- open/closed systems: -20°C...195°C

- Unistats (only closed): -20°C...235°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 20 mm²/s

Can: 10 l

Heat transfer fluid M40.165/220.10

Temperature range for:

- open/closed systems: -40°C...165°C

- Unistats (only closed): -40°C...220°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 10 mm²/s

Can: 5 l

Heat transfer fluid M40.165/220.10

Temperature range for:

- open/closed systems: -40°C...165°C

- Unistats (only closed): -40°C...220°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 10 mm²/s

Can: 10 l

Heat transfer fluid M60.115/200.05

Temperature range for:

- open/closed systems: -60°C...115°C

- Unistats (only closed): -60°C...200°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 5 mm²/s

Can: 5 l

Heat transfer fluid M60.115/200.05

Temperature range for:

- open/closed systems: -60°C...115°C

- Unistats (only closed): -60°C...200°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 5 mm²/s

Can: 10 l

Heat transfer fluid M80.055.03

Temperature range for:

- open/closed systems: -80°C...55°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 3 mm²/s

Can: 5 l

Heat transfer fluid M80.055.03

Temperature range for:

- open/closed systems: -80°C...55°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 3 mm²/s

Can: 10 l

Temperature range depends on mixing ratio

Material: Monoethylenglycol, concentrate

Mixing ratio: 50% MEG / 50% water

Colour: light yellow, clear

Viscosity at 25°C: approx. 2 mm²/s

Can: 10 l

Temperature range depends on mixing ratio

Material: Monoethylenglycol, concentrate

Mixing ratio: 50% MEG / 50% water

Colour: light yellow, clear

Viscosity at 25°C: approx. 2 mm²/s

Can: 50 l

Algae protection 0,1 ltr

- Delivery only within Germany -

Bath cover isolated, for stainless steel bath tank 5.5 liters (#6052)

Bath cover isolated, for stainless steel bath tank 11 liters (#6053)

Bath cover isolated, for stainless steel bath tank 22 liters (#6054)

M16x1 female thread to M16x1 male thread

Cable compatible control: CC RS232 / PC

RS232 (3m)

Cover set for interfaces (USB, RS232, Pt100) in the colour Red for KISS heating and cooling circulators.

To replace the standard gray covers. Free of charge for new orders of any KISS models - please indicate the item number when ordering!

Cover set for interfaces (USB, RS232, Pt100) in the colour Blue for KISS heating and cooling circulators.

To replace the standard gray covers. Free of charge for new orders of any KISS models - please indicate the item number when ordering!

Sensor open in protective pipe Ø 8 mm

170 mm (standard cable length 1,5 m)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Control cable Unipump/ Unistat (3m)

M16x1 female thread to R1/2 female thread

Trolley for CC-415/wl, CC-505/wl, CC-508/w, CC-805

Control cable (3m): CP AIF / open

Hose MT-350-3-M16x1

Metal

Temperature range: -100°C...350°C

Length: 300 cm

Connection: M16x1

Nominal width: 12 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

Heat transfer fluid M90.055/170.02

Temperature range for:

- open/closed systems: -90°C...55°C

- Unistats (only closed): -90°C...170°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 2 mm²/s

Can: 5 l

Heat transfer fluid M90.055/170.02

Temperature range for:

- open/closed systems: -90°C...55°C

- Unistats (only closed): -90°C...170°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 2 mm²/s

Can: 10 l

Trolley Unistat 705, 705w, 410w

additional height: 7,05 cm

Heat transfer fluid M80.100/250.03

Temperature range for:

- open/closed systems: -80°C...100°C

- Unistats (only closed): -80°C...250°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 7 mm²/s

Can: 5 l

Heat transfer fluid M80.100/250.03

Temperature range for:

- open/closed systems: -80°C...100°C

- Unistats (only closed): -80°C...250°C

Material: silicon oil

Colour: colourless, clear

Viscosity at 25°C: 7 mm²/s

Can: 10 l

M16x1 male thread to M16x1 male thread

Control cable (3m): CP RS485 / open

Extension cable with plug & connection,

(Lemosa)/length 3m standard

Displacement insert CC-410, CC-410wl

Dimensions: 275 x 275 x 189 mm (L x W x H)

Calibration insert CC-410, CC-410wl

Also required: #9609

Trolley for CC-410/wl

M16x1 male thread to G1/2 male thread

Stand for KISS E, CC-E

Cable CC/RS232 (PC)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).

Available options (at additional cost):

- inlet and outlet connections into the bath (direct temperature control)

- inlet and outlet connections into the double-wall (indirect temperature control)

Trolley for K20, K25, 220B, 225B

Set of plugs, 15pol, CC

Drain hose, pressureless, T-180-NW8

PTFE

Temperature range: -60°C...180°C

Nominal width: 8 mm

Drain hose, pressureless, T-180-NW12

PTFE

Temperature range: -60°C...180°C

Nominal width: 12 mm

Temperature sensor PT100, M16x1, for fluid outlet or return

Temperature sensor PT100, M16x1, for fluid outlet or return, double

R1/2 female thread to 3/4 NPT female thread

R1/2 female thread to R1/2 female thread

M16x1 female thread to M16x1 female thread

M16x1 female thread to R1/2 male thread

M16x1 female thread to G3/4 female thread

Temperature sensor PT100, G1/2", for fluid outlet or return, double

M16x1 male thread to G1/2 female thread

Bath cover PTFE Unical 700, CAL 1-4, Unical 1

Bath cover PE Unical 700, CAL 1-4, Unical 1

Insulated sleeving internal-Ø 42mm,

thick 22mm

Insulated sleeving internal-Ø 48mm,

thick 22mm

Insulated sleeving internal-Ø 57mm,

thick 23mm

Hose MT-350-1,5-M30x1,5

Metal

min. temp.: -100°C; max. temp.: 350°C

length: 150 cm; connection: M30x1,5

nominal width: 20 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.

M30x1,5 female thread to G1/2 male thread

M30x1,5 female thread to G1/2 female thread

M30x1,5 male thread to G1/2 male thread

M30x1,5 male thread to R1/2 female thread

Bypass M16x1 for Unistat, bench top

Temperature range: -20°C ... 140°C

Manually adjustable bypass M30x1,5

for Unistats

Temperature range: -20°C ... 150°C, insulated.

The bypass is easily bendable.

Hose MT-350-1-M30x1,5

Metal

Temperature range: -100°C...350°C

Length: 100 cm

Connection: M30x1,5

Nominal width: 20 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

Hose MT-350-2-M30x1,5

Metal

Temperature range: -100°C...350°C

Length: 200 cm

Connection: M30x1,5

Nominal width: 20 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

Hose MT-350-3-M30x1,5

Metal

Temperature range: -100°C...350°C

Length: 300 cm

Connection: M30x1,5

Nominal width: 20 mm

Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps

M16x1 female thread to M30x1,5 male thread

M30x1,5 male thread to G3/4 female thread

M30x1,5 male thread to G1 male thread

M30x1,5 female thread to G3/8 male thread

M30x1,5 male thread to G3/4 male thread

M30x1,5 male thread to M30x1,5 male thread

M16x1 male thread to M30x1,5 male thread

Ball valve, M30x1,5
