The POKO/ECS Interface has connections complying with the NAMUR Standard and is fitted as standard on all Unistats. The following interfaces are integrated: ECS external control signal, POKO Volt free contact (programmable).
Calibration bend M24x1,5 with sensor pocket for sensor Ø 6 mm / length 160 mm
Calibration insert CC-405/w, CC-415/wl, CC-505/wl, CC-508/w, CC-805, CC-902
Also required: #9609
19 mm thick / internal-Ø 19mm
Insulated sleeving for braided hoses
self-adhesive
19 mm thick / internal-Ø 28mm
Insulated sleeving for braided hoses
self-adhesive
19 mm thick / internal-Ø 35mm
Insulated sleeving for braided hoses
self-adhesive
19 mm thick / internal-Ø 42mm
Insulated sleeving for braided hoses
self-adhesive

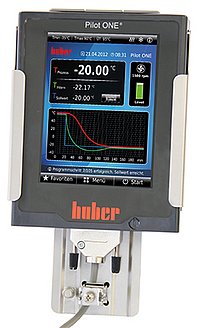

Mounting bracket for wall mounting of Pilot ONE
Displacement insert CC-304B
Dimensions: 125 x 95 x 141 mm (L x W x H)
Temperature sensor PT100, G3/4", for fluid outlet or return
Manually adjustable bypass M30x1,5 for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated.
The bypass is easily bendable.
Manually adjustable bypass M16x1 for Unistats, benchtop models
Extended temperature range: -60°C ... 200°C, non-insulated.
The bypass is easily bendable.
Manually adjustable bypass M24x1,5 for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated.
The bypass is easily bendable.
Manually adjustable bypass M38x1,5 for Unistats
Extended Temperature range: -60°C ... 200°C, non-insulated.
The bypass is easily bendable.
Manually adjustable bypass G3/4 for Unichiller
Extended temperature range: -60°C ... 200°C, non-insulated.
The bypass is easily bendable.
Manually adjustable bypass G1 1/4 for Unichiller
Extended temperature range: -60°C ... 200°C, non-insulated.
The bypass is easily bendable.
CAN Switch for remote operation or external installation:
- distribution switch to connect multiple accessories simultaneously such as the ComG@te, External VPC-Bypass, etc.
- for the remote operation of Huber devices
Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64191
Manometer 0-2.5 bar #64192
Manometer 0-4 bar #63933
Manometer 0-10 bar #64193
The bypass is easily bendable.
Manually adjustable bypass M24x1,5 with connection for manometer, for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64191
Manometer 0-2.5 bar #64192
Manometer 0-4 bar #63933
Manometer 0-10 bar #64193
The bypass is easily bendable.
The control valve is connected to a cooliing coil, this can be controlled by the Pilot ONE.
Permissible temperature range: -20°C...+80°C
Max. pressure: 6 bar
Permitted medium: water/ water-MEG mixture
Protection class: IP20
Connection cooling circuit: hose connection 6mm / 8mm
Connection length: 1.8 m
Connection electrical: 15 pin Sub-D port (Pilot ONE)
1.) Heating bath circulators CC-202C, CC-205B, CC-304B, CC-308B and CC315B (cooling coil fitted as standard)
2.) Heating bath circulators CC-104A to CC-118A in combination with optional cooling coil #30554
3.) Wärme-Badthermostate CC-208B to CC-225B in combination with optional cooling coil #30564
4.) Huber devices with cooling coils NW6 or NW8
Please note that this is not suitable for use with KISS circulators!
Remote control EEX Panel 15.0"
with stainless steel housing for wall mounting for Huber temperature control units with Pilot ONE.
Explosion protection zones 1 and 21:
ATEX marking
- Gases/vapours: II 2G Ex db eb q [ib] IIC T4 Gb
- Dust: II 2D Ex tb IIIC T120 °C Db
IECEx marking
- Gases/vapours: Ex db eb q [ib] IIC T4 Gb
- Dust: Ex tb IIIC T120 °C Db
- Power Supply: AC 100-230V
- Protection class: IP54
- Weight: 55kg
- Storage: 128 GB SSD hard disk space, 8 GB RAM memory
- Operating system: Windows 10 IoT LTSB 64-bit
- Ambient temperature range: 0 °C to 50 °C
- Ethernet cable, shielded, 25m, CAT6
- Stainless steel housing with built-in POLARIS Panel PC 15" for wall mounting
- Housing material: stainless steel 1.4404
- Protection class: IP54
- Dimensions (WxDxH): 650x150x550mm
Quick-disconnect adaptor M30x1,5
Location: hose side
Temperature range: -90°C...230°C
Disconnect temperature: 20°C
Connection: M30x1,5
Material: 1.4404; HTF contact, 1.4571
Max. pressure at 20°C: 25 bar
Internal diameter: 20 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick-disconnect coupler M30x1,5
Location: temperature control unit, application
Temperature range: -90°C...230°C
Disconnect temperature: 20°C
Connection: M30x1,5
Material: 1.4404; HTF contact 1.4571
Max. pressure at 20°C: 25 bar
Internal diameter: 20 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Connection for pressure relief device
M30x1,5 female to M30x1,5 male adapter
for connection of a pressure relief device
with a Rp 1/4 connection, thermally decoupled
(as optional accessory for quick disconnect adaptors #10406, #10407)
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device MID, only suitable for conductive heat transfer fluids:
- Temperature range: -40...130°C
- Flow rate: 1...300 l/min
- Measurement accuracy: 3,7...0,7 %
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device MID, only suitable for conductive heat transfer fluids:
- Temperature range: -40...130°C
- Flow rate: 0,2...100 l/min
- Measurement accuracy: 8...0,6 %
The international guarantee from Huber offers worldwide guarantee coverage
for distributors, OEM partners etc.
Your advantages:
- Comprehensive care free package
- Professional repair work
- Fast execution of guarantee repairs
- Predictable guarantee costs
- Minimising downtime
- Simple handling of guarantee cases
- No further costs for repairs during guarantee
The E-grade "Explore" for Unistats is a development tool for chemical processes which gives access to the following values:
- Performance: Heating or cooling capacity of the system
- Temperature values: Setpoint, internal, process, return
- Temperature differences: ?T internal-return, ?T process-return, ?T process-internal
- Circulation pump: Pressure / speed (depending on model)
The Profibus Gateway DP-V1 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.
The Profibus Gateway DP-V1 has a configurable range of functions, the PLC must therefore support acyclic configuration.
for units with Pilot ONE controller
Power Supply: 100-240V 1~/2~ 50/60Hz
Accessories (included): Mounting Bracket, Connection cable, Power cable
Requirement: Controller (SPS) must be capable for DPV1
Download: Device configuration file
Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with OLÉ controller (only for measuring, no external temperature control).
Only available factory-fitted (or retrofitting by a Huber Service partner).
Quick-disconnect adaptor M24x1,5
Location: temperature control unit, application
Temperature range: -75°C...230°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick-disconnect coupler M24x1,5
Location: hose side
Temperature range: -75°C...230°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
The OPC UA (OPC Unified Architecture) communication protocol semantically describes data and thus allows a data exchange between automation systems without the need to program a driver. Huber temperature control units with Pilot ONE can already communicate via the modern OPC UA protocol by using the E-grade "OPC UA".
Trolley for Unichiller 007/w, 010/w, 012w, 015w, P007/w, P010/w, P012w, P015w (and -H models)
Trolley for Unichiller 012, 015, 022w, 025w, P012, P015, P022w, P025w (and -H models)
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:
- Temperature range: -100...350°C
- Flow rate: 6...60 l/min
- Measurement accuracy: 2 %
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:
- Temperature range: -100...350°C
- Flow rate: 15...150 l/min
- Measurement accuracy: 2 %
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 5 l
Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with KISS controller (only for measuring, no external temperature control).
Only available factory-fitted (or retrofitting by a Huber Service partner).
POKO/ECS Interface for units with OLÈ controller
only available factory-fitted (or retrofitting by a Huber Service partner)
Quick- disconnect coupler M16x1
Temperature range: -45°C...220°C
Connection: M16x1 male
location: hose side
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick- disconnect adaptor M16x1
Temperature range: -45°C...220°C
Connection: M16x1 male
Location: Temperature control unit, application
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick-disconnect coupler M24x1,5
Location: hose side
Temperature range: -45°C...220°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick-disconnect adaptor M24x1,5
Location: temperature control unit, application
Temperature range: -45°C...220°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick- disconnect coupler M16x1
Temperature range: -75°C...230°C
Connection: M16x1 male
Location: hose side
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Quick- disconnect adaptor M16x1
Temperature range: -75°C...230°C
Connection: M16x1 male
Location: Temperature control unit, application
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Note:
When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
Manually adjustable bypass M16x1 with connection for manometer, for Unistats
Temperature range: -60°C ... 200°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
Hose MT-140-1-G3/4
Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-1,5-G3/4
Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-2-G3/4
Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-3-G3/4
Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-1-G1
Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-1,5-G1
Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-2-G1
Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-3-G1
Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-1-G1 1/4
Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-1,5-G1 1/4
Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-2-G1 1/4
Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Hose MT-140-3-G1 1/4
Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicon cover, ends secured and covered with silicon caps
Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Unipump I DC M24x1,5
Temperature range: -120 ... 300 °C
Pressure pump max.: 55 l/min / 1,0 bar
Pump connection: M24x1,5
Power supply: 208-240V 1~ 50/60Hz
Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Unipump IV MC M38x1,5
Temperature range: -120 ... 350 °C
Pressure pump max. 110 l/min / 2 bar
Pump connection: M38x1,5 male
Power supply: 380V- 480V 3~ 50/60Hz
Dimensions: 275x420x295 mm
Hose MT-200-1-Flange DN40
Metal
Temperature range: -90°C...200°C
Length: 100 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
Hose MT-200-1,5-Flange DN40
Metal
Temperature range: -90°C...200°C
Length: 150 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
Hose MT-200-2-Flange DN40
Metal
Temperature range: -90°C...200°C
Length: 200 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Unipump V MC M38x1,5
Temperature range: -120 ... 350 °C
Pressure pump max. 120 l/min / 4 bar
Pump connection: M38x1,5 male
Power supply: 380V- 480V 3~ 50/60Hz
Dimensions: 275x420x295 mm
Hose MT-200-3-Flange DN40
Metal
Temperature range: -90°C...200°C
Length: 300 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
Hose MT-200-1-Flange DN50
Metal
Temperature range: -90°C...200°C
Length: 100 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
Hose MT-200-1,5-Flange DN50
Metal
Temperature range: -90°C...200°C
Length: 150 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
Hose MT-200-2-Flange DN50
Metal
Temperature range: -90°C...200°C
Length: 200 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
Hose MT-200-3-Flange DN50
Metal
Temperature range: -90°C...200°C
Length: 300 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
Holder for immersion coolers
TC45/-E, TC100/-E
for mounting on bath
Control panel extension cable for Pilot ONE for using the controller as remote control (without RS232), length 3m
(Using #16160 as remote control does not allow communication via RS232. If required, please use #56196.)
Hose for cooling water PZ-90-1-G1/2
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
Hose for cooling water PZ-90-1,5-G1/2
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
Hose for cooling water PZ-90-2-G1/2
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
Hose for cooling water PZ-90-1-G3/4
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
Hose for cooling water PZ-90-1,5-G3/4
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G3/4
Max. Pressure at 20°C: 10 bar
Internal diameter: 20 mm
Hose for cooling water PZ-90-2-G3/4
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
Hose for cooling water PZ-90-1-G1
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
Hose for cooling water PZ-90-1,5-G1
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
Hose for cooling water PZ-90-2-G1
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
Polycarbonate bath 130A
Bath opening (WxD): 480x180 mm
Bath depth: 312 mm
Bath volume: 30 l
Dimensions (WxDxH): 500x200x322 mm
Hose for cooling water PZ-90-1-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Hose for cooling water PZ-90-1,5-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Hose for cooling water PZ-100-2-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Bath cover one piece 212B, 215B, K12, K15 - Bath cover front 220B, 225B, K20, K25
Bath cover one piece 220B, 225B, K20, K25
Pump adaptor cpl.
for KISS E, CC-E and with baths 106A to 118A
incl. hose connectors NW12
Pump adaptor cpl.
for KISS E, CC-E and baths 208B to 225B and K12 to K25
incl. hose connectors NW12
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 220-240V 1~/2~ 50/60Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 110-120V 1~ 50/60Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 220-240V 1~/2~ 50/60Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 110-120V 1~ 50/60 Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 110-120V 1~ 50/60 Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 230V 1~ 50/60 Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 220-240V 1~/2~ 50/60Hz)
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
(Power Supply: 110-120V 1~ 50/60 Hz)
Polycarbonate bath 112A
Bath opening (WxD): 303x342 mm
Bath depth: 150 mm
Bath volume: 12 l
Dimensions (WxDxH): 333x358x166 mm
Polycarbonate bath 118A
Bath opening (WxD): 303x502 mm
Bath depth: 150 mm
Bath volume: 18 l
Dimensions (WxDxH): 333x518x166 mm
Polycarbonate bath 106A
Bath opening (WxD): 130x290 mm
Bath depth: 150 mm
Bath volume: 6 l
Dimensions (WxDxH): 142x305x161 mm
Polycarbonate bath 108A
Bath opening (WxD): 130x390 mm
Bath depth: 150 mm
Bath volume: 8 l
Dimensions (WxDxH): 142x405x161 mm
Polycarbonate bath 110A
Bath opening (WxD): 130x490 mm
Bath depth: 150 mm
Bath volume: 10 l
Dimensions (WxDxH): 142x505x161 mm
The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), RS485 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-Interface 0/4-20 mA or 0-10 V (bi-directional).
For Petite Fleur, Grande Fleur, Chili, Unichillers with Pilot ONE, Ministats, CC-300BX to CC-906w.
For easy filling of the temperature control unit with heat transfer fluid directly from the canister.
With drain valve, 23 mm, ventilated.
Displacement insert CC-308B
Dimensions: 124 x 98 x 141 mm (L x W x H)
Ball valve M24x1,5
Temperature range: -60°C ... +200°C (max. 10 bar at +175°C)
Ball valve, M38x1,5
Temperature range: -60 ... +200°C (max. 10 bar at +175°C)
Ball valve M30x1,5
Temperature range: -60°C ... +200°C (max. 10 bar at +175°C)
Ball valve M16x1
Temperature range: -60°C ... +200°C (max. 10 bar at +175°C)
2-way Header, M16x1
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10159 is included.
3-way Header, M16x1
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10159 is included.
4-way Header, M16x1
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
5-way Header, M16x1
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
2-way Header, M38x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10703 is included.
3-way Header M30x1,5
Temperature range: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10450 is included.
4-way Header, M30x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
Pentagon 5 port - manifold
with CPC Quickconnects, valved coupling
high grade synthetic material -40 ... +80 °C
chemically resistant and thermally robust
Max. pressure: 1.5 bar
Tube connection:
Inlet: 3/8" (approx. 10 mm)
Outlet: 1/4" (approx. 8 mm)
Hose, pressureless, FKM NW12
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: FKM
2-way Header, M24x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10538 is included.
4-way Header, M24x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
2-way Header, M30x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10450 is included.
3-way Header, M38x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adaptor #10703 is included.
4-way Header, M38x1,5
Temp.: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit,
a hose in corresponding length is required.
2-way Header with ball valves, M16x1
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
3-way Header with ball valves, M16x1
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
4-way Header with ball valves, M16x1
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
5-way Header with ball valves, M16x1
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
2-way Header with ball valves, M24x1,5
Temperature range: -10 ... +180°C (max. 60 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
4-way Header with ball valves, M24x1,5
Temperature range: -10 ... +180°C (max. 20 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
2-way Header with ball valves, M30x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
3-way Header with ball valves, M30x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
4-way Header with ball valves, M30x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
2-way Header with ball valves, M38x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
3-way Header with ball valves, M38x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
4-way Header with ball valves, M38x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
Octagon 8 port - manifold
with CPC Quickconnects, valved coupling
high grade synthetic material -40 ... +80 °C
chemically resistant and thermally robust
Max. pressure: 1.5 bar
Tube connection:
Inlet: 3/8" (approx. 10 mm)
Outlet: 1/4" (approx. 8 mm)
2-way Valve system 3/4"
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
3-way Valve system 3/4"
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
Insulated sleeving / f. tube NW12
internal-Ø 17 mm 12mm thick, price per meter
Adjustable base for 220B, 225B, K20, K25, 118A
Bath cover one piece 212B, 215B, K12, K15
suitable for use with adjustable base #40763
Bath cover back 118A, 220B, 225B, K20, K25
suitable for use with adjustable base #40681
Bath cover one piece 112A
suitable for use with adjustable base #40764
Unistat Control ONE
electronic module with insertion slot for Pilot ONE controller for Unistats
(Pilot ONE not included)
Controller Pilot ONE for CC Circulators, Unichiller, Unistats
Glass adapter for rotary evaporator
50mm flange to GL14
Glass accessory set for cold trap CT50 Single OLÉ
consisting of:
#503344 - glass trap body
#503345 - 3 way vacuum stopcock adaptor
#503346 - 1-ltr receiver flask
#503347 - quick release clamp 100 mm
#504544 - O-Ring DN100
USB control cable
from: controller Pilot ONE, Mini-USB
to: PC / Notebook, USB Type A
Length 3m
for data recording, data communication and firmware updates
RS232 control cable
from: Huber-Unit, 15 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3m
This cable is required to use the 15 pins RS232 interface on Unistat models.
Touchpen Set for Pilot ONE controller for comfortable touchscreen operation with protective gloves. The set includes the touch pen and a pen holder (self adhesive) with a flexible cord.
Stainless Steel Bath (insulated) 215B
Width bath opening WxD: 290x320 mm
Bath depth: 200 mm
Bath volume: 15 l
Overall dimensions WxDxH: 350x375x256 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Stainless Steel Bath (insulated) 225B
Width bath opening WxD: 290x500 mm
Bath depth: 200 mm
Bath volume: 25 l
Overall dimensions WxDxH: 350x555x256 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Bath cover back 118A, 220B, 225B, K20, K25
Drain valve
for polycarbonate baths 112A, 118A, 130A
connection screw M12x1.5
Test tube rack type A made of polycarbonate for 106A to 110A, Immersion depth 50 mm, Bore holes 12 x Ø22
Test tube rack type B made of polycarbonate for 106A to 110A, Immersion depth
55 mm, Bore holes 20 x Ø17
Test tube rack type C made of polycarbonate for 106A to 110A, Immersion depth 95 mm, Bore holes 20 x Ø17
Test tube rack type D made of polycarbonate for 106A to 110A, Immersion depth 45 mm (Hemolyses), Bore holes 30 x Ø13
Test tube rack type E made of polycarbonate for 106A to 110A, Immersion depth 50 mm, Bore holes 6 x Ø30
Test tube rack type F made of polycarbonate for 106A to 110A,
Immersion depth 25 mm (Eppendorf),
Bore holes 36 x Ø11
Test tube rack type 1 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 36 x Ø18
Test tube rack type 2 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 70 mm
Bore holes 45 x Ø13
Test tube rack type 3 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 46 x Ø18
Test tube rack type 4 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersoin depth 70 mm
Bore holes 58 x Ø13
Displacement insert CC-205B
Dimensions: 100 x 85 x 133 mm (L x W x H)
Displacement insert CC-315B
Dimensions: 260 x 135 x 185 mm (L x W x H)
Displacement insert CC-510w, CC-515w, CC-520, CC-520w, CC-525w, CC-820, CC-820w
Dimensions: 265 x 145 x 185 mm (L x W x H)
Displacement insert CC-510, CC-515, CC-905, CC-905w, CC-906w
Dimensions: 245 x 240 x 189 mm (L x W x H)
Stainless steel tank 5,5 ltr/210x282x205mm
standart dimensions
drain point on short side
Stainless steel tank 11 ltr / 250x420x205mm
standart dimensions
drain point on short side
Stainless steel tank 22 ltr / 370x520x205mm
standart dimensions
drain point on short side
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Sensor: closed, external
D: 8 mm, 400mm
cable: 1.5 m
Hose, pressureless, PVC-60-NW12
PVC
Temperature range: -20°C...60°C
Nominal width: 12 mm
Hose, pressureless, PVC-60-NW8 PVC
Temperature range: -20°C...60°C
Nominal width: 8 mm
hose, pressureless, PVC NW3,2
Temperature range: -20°C...60°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 3,2 mm
Material: PVC
Hose, pressureless, NBR NW12
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: NBR
Hose, pressureless, NBR NW8
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: NBR
Hose, pressureless, S-180-NW12
Silicon
min. temp.: -40°C; max. temp.: 180°C
nominal width: 12 mm
Silicon hoses are not suitable for heat transfer fluids which contain Silicon.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Hose, pressureless, S-180-NW8
Silicon
min. temp.: -40°C; max. temp.: 180°C
nominal width: 8 mm
Silicon hoses are not suitable for heat transfer fluids which contain Silicon.
Please check the safety data sheet of the planned heat transfer fluid before using it.
hose, pressureless, FKM NW8
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: FKM
Hose MT-350-1-M16x1
Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-1,5-M16x1
Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Ball valve M16x1
Temperature range: -20°C ... +90°C
(max. 6 bar at +90°C)
Sensor : closed Ø 6 mm, 200 mm
with hand grip (standart cable length 1,5 m)
Hose MT-350-2-M16x1
Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Sensor: closed, external
D: 6 mm, 180mm
cable: 1.5 m
RS232 control cable
from: Huber-Unit / Com.G@te, 9 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3m
Calibration insert CC-510, CC-515, CC-905, CC-905w, CC-906w
Also required: #9609
Float switch in sight glass Unistat
for extended safety, with cable and connector plug
for level socket on Com.G@te #6915
Heat transfer fluid P20.190.40
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 5 l
Heat transfer fluid P20.190.40
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 20 l
Heat transfer fluid P20.225/275.50
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 5 l
Heat transfer fluid P20.225/275.50
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 10 l
Heat transfer fluid M20.195/235.20
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 5 l
Heat transfer fluid M20.195/235.20
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 10 l
Heat transfer fluid M40.165/220.10
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 5 l
Heat transfer fluid M40.165/220.10
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 10 l
Heat transfer fluid M60.115/200.05
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 5 l
Heat transfer fluid M60.115/200.05
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 10 l
Heat transfer fluid M80.055.03
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 5 l
Heat transfer fluid M80.055.03
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 10 l
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 10 l
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 50 l
Bath cover isolated, for stainless steel bath tank 5.5 liters (#6052)
Bath cover isolated, for stainless steel bath tank 11 liters (#6053)
Bath cover isolated, for stainless steel bath tank 22 liters (#6054)
Cable compatible control: CC RS232 / PC
RS232 (3m)
Cover set for interfaces (USB, RS232, Pt100) in the colour Red for KISS heating and cooling circulators.
To replace the standard gray covers. Free of charge for new orders of any KISS models - please indicate the item number when ordering!
Cover set for interfaces (USB, RS232, Pt100) in the colour Blue for KISS heating and cooling circulators.
To replace the standard gray covers. Free of charge for new orders of any KISS models - please indicate the item number when ordering!
Sensor open in protective pipe Ø 8 mm
170 mm (standard cable length 1,5 m)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Trolley for CC-415/wl, CC-505/wl, CC-508/w, CC-805
Hose MT-350-3-M16x1
Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Heat transfer fluid M90.055/170.02
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 5 l
Heat transfer fluid M90.055/170.02
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 l
Trolley Unistat 705, 705w, 410w
additional height: 7,05 cm
Heat transfer fluid M80.100/250.03
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 5 l
Heat transfer fluid M80.100/250.03
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 10 l
Extension cable with plug & connection,
(Lemosa)/length 3m standard
Displacement insert CC-410, CC-410wl
Dimensions: 275 x 275 x 189 mm (L x W x H)
Calibration insert CC-410, CC-410wl
Also required: #9609
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Drain hose, pressureless, T-180-NW8
PTFE
Temperature range: -60°C...180°C
Nominal width: 8 mm
Drain hose, pressureless, T-180-NW12
PTFE
Temperature range: -60°C...180°C
Nominal width: 12 mm
Temperature sensor PT100, M16x1, for fluid outlet or return
Temperature sensor PT100, M16x1, for fluid outlet or return, double
Temperature sensor PT100, G1/2", for fluid outlet or return, double
Bath cover PTFE Unical 700, CAL 1-4, Unical 1
Bath cover PE Unical 700, CAL 1-4, Unical 1
Hose MT-350-1,5-M30x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 150 cm; connection: M30x1,5
nominal width: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Bypass M16x1 for Unistat, bench top
Temperature range: -20°C ... 140°C
Manually adjustable bypass M30x1,5
for Unistats
Temperature range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Hose MT-350-1-M30x1,5
Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-2-M30x1,5
Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-3-M30x1,5
Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Ball valve, M30x1,5
Temperature range: -10 ... +180°C (max. 6 bar bei + 180°C)
Welding end M30x1,5
containing curvedface union #5991 and
sleeve nut #5992
Valid only for Unistats
Temperature range for:
- closed systems: -90°C...170°C
- closed systems (with Inertgas): -90°C...200°C
Colour: yellowish, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 l
Hose MT-350-0,5-M30x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 50 cm; connection: M30x1,5
nominal width: 20 mm
Calibration insert CC-510w, CC-515w, CC-520, CC-520w, CC-525w, CC-820, CC-820w
Also required: #9609
Temperature sensor PT100, M30x1.5, for fluid outlet or return
Temperature sensor PT100, M30x1.5, for fluid outlet or return, double
Software solution for controlling Huber units as well as for visualisation and documentation of process relevant data. SpyControl is available as free version (max. 1 channel) or as paid full version (max. 10 channels).
The software is available in the download section.
Suitable for PC's and notebooks with Microsoft Windows operating system.
Hose MT-350-1-M38x1,5
Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-1,5-M38x1,5
Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-2-M38x1,5
Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-3-M38x1,5
Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Valid only for Unistats
Temperature range for:
- closed systems: 20°C...170°C
- closed systems (with Inertgas): 20°C...340°C
Colour: orange, clear
Viscosity at 25°C: 32 mm²/s
Can: 5 l
Valid only for Unistats
Temperature range for:
- closed systems: 20°C...170°C
- closed systems (with Inertgas): 20°C...340°C
Colour: orange, clear
Viscosity at 25°C: 32 mm²/s
Can: 10 l
Stainless Steel Bath (insulated) 208B
Width bath opening WxD: 235x290 mm
Bath depth: 150 mm
Bath volume: 8,5 l
Overall dimensions WxDxH: 290x350x206 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Stainless Steel Bath (insulated) 212B
Width bath opening WxD: 290x320 mm
Bath depth: 150 mm
Bath volume: 12 l
Overall dimensions WxDxH: 350x375x206 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Stainless Steel Bath (insulated) 220B
Width bath opening WxD: 290x500 mm
Bath depth: 150 mm
Bath volume: 20 l
Overall dimensions WxDxH: 350x555x206 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Ball valve, M38x1,5
Temperature range: -10 ... +180°C (max. 10 bar at +180°C)
Hose MT-400-1-M24x1,5
Metal
min. temp.: -120°C; max. temp.: 400°C
length: 100 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-400-1,5-M24x1,5
Metal
min. temp.: -120°C; max. temp.: 400°C
length: 150 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-400-2-M24x1,5
Metal
min. temp.: -120°C; max. temp.: 400°C
length: 200 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-400-3-M24x1,5
Metal
min. temp.: -120°C; max. temp.: 400°C
length: 300 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Calibration insert Ministat 125
Also required: #9608
Calibration insert Ministat 230
Also required: #9608
Calibration insert Ministat 240
Also required: #9608
Displacement insert Ministat 125 / 125w
Dimensions: 172 x 78 x 110 mm (L x W x H)
Displacement insert Ministat 230 / 230w
Dimensions: 162 x 80 x 124 mm (L x W x H)
Displacement insert Ministat 240 / 240w
Dimensions: 194 x 80 x 147 mm (L x W x H)
Drain valve, universal
for all baths/thermostats
connection screw G3/8"
with sealing cap
(not suitable for polycarbonate baths 112A, 118A, 130A)
The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), RS485 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-Interface 0/4-20 mA or 0-10 V (bi-directional).
For Unistats, CC-E to CC-208B.
Manually adjustable bypass G3/4
for Unichiller
Temperatur range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Temperature sensor PT100, M38x1.5, for fluid outlet or return
Ball valve, M24x1,5
Temperature range: -10°C ... +180°C (max. 6 bar bei +180°C)
Manually adjustable bypass M24x1,5
for Unistats (bench top)
Temperature range: -10°C ... 150°C, insulated.
The bypass is easily bendable.
Hose MT-350-1-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 100 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-350-1,5-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 150 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-350-2-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 200 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-350-3-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 300 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-1-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-1,5-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-2-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-3-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
External pressure sensor M30x1,5
for VPC bypass
(Connection on VPC)
External pressure sensor M38x1,5
for VPC bypass
(Connection on VPC)
External pressure sensor M24x1,5
for VPC bypass
(Connection on VPC)
Manually adjustable bypass M24x1,5
for Unistats (tower housing)
Temperature range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Manually adjustable bypass M38x1,5
for Unistats
Temperature range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Manually adjustable bypass G1 1/4
for Unichiller
Temperatur range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Hose, pressureless, S-180-NW6
Silicon
min. temp.: -40°C; max. temp.: 180°C
nominal width: 6 mm
Silicon hoses are not suitable for heat transfer fluids which contain Silicon.
Please check the safety data sheet of the planned heat transfer fluid before using it.
E-grade "Exclusive"
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- Programmer with 3 programs (max. 15 steps)
- Ramp function (linear)
- TAC (True Adaptive Control)
- Saving/loading via USB
(package: 2)
E-grade "Professional"
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- TAC (True Adaptive Control)
- Saving/loading via USB
- Programmer with 10 programs (max. 100 steps)
- Calendar start
- Ramp function (linear and non-Linear)
- User menus can be customised (Administrator Level)
- 2nd set point
(package: 3)
PS level controller
- for external open baths
- only suitable for units with pressure- and sucction pump
The installation manual can be downloaded from our website www.huber-online.com.
Holder ubbelohde viscosimeter for Visco 3
Trolley for Ministat 125/w, Minichiller 280/w, Minichiller 300/w
Hose MT-200-1-M16x1
Metal
Temperature range: -50...200°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-200-1,5-M16x1
Metal
Temperature range: -50°C...200°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-200-2-M16x1
Metal
Temperature range: -50°C...200°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-200-3-M16x1
Metal
Temperature range: -50°C...200°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1,5-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-2-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-3-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1,5-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-2-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-3-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Manually adjustable bypass G1 1/4 with connection for manometer, for Unichiller
Temperature range: -20°C ... 150°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable..
External calibration bath Unical 700
operating temperature range: -100...300 °C
temperature stability at -10°C: 0,002 K
pump connection: M30X1,5
dimension (WxDXH): 300x300x566 mm
width with overflow vessel: 440 mm
bath opening (Ø x H): 118 x 385 mm
bath volume: 7 liter
connections: M30x1,5
following bath covers are available:
- PTFE, -100...200°C, #6365
- Stainless steel, -100...300°C, #6367
- PE plastic, #6366
Heat transfer fluid M10.120.08
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 5 l
Not suitable for use with Unichillerss
Heat transfer fluid M10.120.08
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 10 l
Not suitable for use with Unichillers
Stepless controlled VPC bypass M30x1,5 (not mounted on unit) for Unistats
temperature range: -90°C ... 200°C
VPC Bypass G 1 1/4
incl. t-piece
for Unichiller with connection G 1 1/4
max. differential pressure 6 bar.
The bypass is not fitted.
Installation to unit is only possible with HUBER hose for cooling water G1 1/4.
temperature range: -90°C ... 200°C
VPC Bypass G 3/4
incl. t-piece
for Unichiller with connection G 3/4
max. differential pressure 6 bar.
The bypass is not fitted.
Installation to unit is only possible with HUBER hose for cooling water G3/4.
temperature range: -90°C ... 200°C
A breather controller is available as an accessory for our Unistats. This allows to realise an inert gas overlay of the thermal fluid in the expansion vessel. Advantages of the breather controller are a longer life-time of the heat transfer fluid as a result of the reduced oxidation as well as an extended temperature range. The breather control limits the pressure and consists of the atmospheric sealing kit comprising of the following parts on a mounting plate:
- Atmosperic sealing kit
- Pressure regulator 20-200mbar
- Safety valve 200 mbar opening
- Bubble counter
- Connection hose
- Max. pressure 1 bar
- Connection: G1/2
Unit not suitable for outdoor installation - can not be installed in a closed room (room must be adequately ventilated).
Calibration bend M30x1,5 with sensor pocket for sensor Ø 6 mm / length 165 mm
Female thread on short side
External pressure sensor M16x1
for VPC variable speed pump
(Com.G@te required)
External pressure sensor M24x1,5
for VPC variable speed pump
(Com.G@te required)
External pressure sensor M30x1,5
for VPC variable speed pump
(Com.G@te required)
Temperature sensor PT100, M24x1,5, for fluid outlet or return
Stepless controlled VPC bypass M24x1,5 (not mounted on unit) for Unistats
temperature range: -90°C ... 200°C
Stepless controlled VPC bypass M38x1,5 (not mounted on unit) for Unistats
temperature range: -90°C ... 200°C
Manually adjustable bypass G3/4 with connection for manometer, for Unichiller
Temperature range: -20°C ... 150°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
Manually adjustable bypass M16x1 with connection for manometer, for Unistats
Temperature range: -20°C ... 140°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
Calibration bend M16x1 with sensor pocket for sensor Ø 4 mm / length 75 mm
For calibration of an internal sensor M38x1,5 for sensor Ø 6 mm / length 160 mm
Temperature sensor PT100, G1 1/4", for fluid outlet or return
Manually adjustable bypass M24x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
Manually adjustable bypass M38x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
The Profinet Gateway enables the connection of Huber temperature control machines to Profinet systems, offering comprehensive facilities for data communication within SPS and process control systems.
for units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Power cable
Download: Device configuration file
The EtherCAT Gateway enables the connection of Huber temperature control machines to EtherCAT systems, offering comprehensive facilities for data communication within SPS and process control systems.
for units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Power cable
Download: Device configuration file
The optional E-grade Remote GUI allows remote control of the Huber temperature control units with Pilot ONE. All functions that are available locally on the Pilot ONE can be displayed and operated identically via the Pilot Remote software on any PC / laptop operating with Microsoft Windows. It is ideal for remote monitoring or remote control within a network (LAN). For example, several Huber units in different rooms can be displayed centrally on one PC. The E-grade Remote GUI can be used to control the temperature control system either locally or from a PC. This allows centralised visualisation and operation. The Pilot Remote software can be downloaded free of charge from our website.
The Profibus Gateway DP-V0 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.
The Profibus Gateway DP-V0 has a defined range of functions, the available parameters are listed in the manual.
for units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Mounting Bracket, Connection cable, Power cable
Requirement: Controller (SPS) must be capable for DPV0
Download: Device configuration file
Float switch in sight glass Unistat
for extended safety, with cable and connector plug
for ECS socket on Unistat (Pilot ONE generation),
Com.G@te or Poko/ECS interface
Temperature range: -45 °C....150 °C
Fluid connection: M38x1,5 male
Dimensions (WxDxH): 397x545x586 mm
Compressed air max.: 4 bar
Power supply: 90-240V 1~/2~ 50/60Hz
Protection class: IP20
Useable: Free-Standing Unistats, Unimotive and Unichiller Tower
Heat transfer fluids: water-ethylene glycol mixtures
Solenoid valves: electrically controlled
Notes:
- Please specify the used device with serial number when ordering.
- Safety device against overpressure not included in the scope of delivery.
- The connection of the fluid return line to the temperature control system must be carried out by others.
- No excess pressure is permitted in the TCU during the active return of the liquid, i.e. a pressure equalisation must have been completed prior to the return of the fluid to the expansion vessel.
Piping kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
Mounting kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).
Temperature range: -40 ... 130 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 80 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out via a turbine flow meters (TURB) and can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).
Temperature range: -90 ... 250 °C
with calibration: -30 ... 95 °C
Calibration (factory-set): Water-Ethylene Glycol 50:50
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -40 ... 130 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 80 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology. The flow measurement is carried out via a turbine flow meters (TURB). The TURB flow meters can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -90 ... 250 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~ 50/60Hz
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
Temperature range: -40 ... 150 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
Temperature range: -90 ... 240 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 200 l/min
Fluid connection: flange DN32 PN10/40 EN1092-1
Power supply: 90-240V 1~/2~ 50/60Hz
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -40 ... 150 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
Mounting kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
Ball valve M16x1
Temperature range: -20°C ... +140°C
(max. 6 bar at +140°C)
hose for cooling water PZ-90-3-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 300 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Trolley for Minichiller 600/w, 800/w, 1000w, 1200w
3-way Header with ball valves M24x1,5
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-Interface 0/4-20 mA or 0-10 V (bi-directional).
For units with Pilot ONE.
The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-Interface 0/4-20 mA or 0-10 V (bi-directional).
For units with Pilot ONE.
The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-Interface 0/4-20 mA or 0-10 V (bi-directional).
For units with Pilot ONE.
