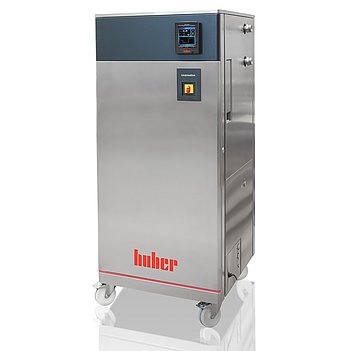

Unimotive 10w-XT

Temperature control system for Automotive applications

Model: Unimotive 10w-XT Group: 4 Order No.: 5004.0003.01 E-class: 32-09-01-17

Functions Technical data Downloads Accessories Warranty extension

Performance Characteristics

The Unimotive model series is specially designed for applications in the automotive industry. The temperature control systems are designed for operation with water-ethylene glycol mixtures with corrosion protection (e.g. Glysantin®) down to -45°C. Typical areas of application are temperature simulations as well as material tests and temperature-dependent stress and load tests for automotive components and functional components. The optionally available "Flow Control Cube" enables precise flow rate measurement and control.
Unimotive temperature control units are ideally suited for integration into test benches, where they ensure reproducible temperatures, e.g. for quality controls, battery tests, transmission and bearing tests as well as for temperature control of air conditioning and vacuum chambers and calibration tasks.
Unimotive models impress with their unique thermodynamics for highly accurate and reproducible results. The proven Unistat technology also enables the shortest possible heating and cooling times and maximum temperature control accuracy for Unimotive units. All Unimotive models are operated via a colour 5.7" touchscreen display with convenient menu navigation.
The model variants "XT" are designed for operating temperatures up to +150 °C. Unimotive XT works with a fully integrated and variable pressure overlay that sets new standards. Overpressure in the fluid circuit can be set to a fixed value or as a ramp for ranges above the standard boiling point. The variable pressure overlay relieves the application at low temperatures by reducing the system pressure. No external pressurisation is required for operation, i.e. Unimotive XT does not require any special infrastructure (e.g. nitrogen gas tanks or similar).

Functions overview

Direct operation with water-ethylene glycol mixture with corrosion protection (for example Glysantin®)

Precise and reproducible temperature control results

Fastest heating and cooling rates

Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation

Adaptive temperature control, self-optimising

Robust, magnetic coupled circulation pump

2 x USB (Host and Device), Ethernet and RS232 interfaces

Efficient operation saves working time and operating costs

Variable pressurisation for operating temperatures up to +150°C

E-grade "Professional" included

Product impressions

Controller

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Temperature range	-45...150
Temperature stability	±0,05
Display resolution	0,01 K
Alarm message	optic, acoustic, relay
Controller	Pilot ONE
Safety class	I / NFL
Protection class	IP20
Dimensions (W x D x H)	730 x 804 x 1738 mm

Heating capacity

Cooling capacity

20	14
0	10
-20	5
-40	0,8
°C	kW

Refrigeration machine

water-cooled, CFC- and HCFC-free

Refrigerant 1st stage

R-452A (A1, H280)

Refrigerant quantity 1st stage

2,9 kg

Delivery capacity pressure pump max.	201 l/min; 5,3
Pump connection	M38x1,5 AG male
Max. permissible viscosity	200 mm²/s
Pump speed adjustable	no
Pump type	magnetically coupled, stainless steel
Pump characteristics	Pressure pump, speed not variable, magnetically coupled

External sensor connection	Pt100
Control input	ECS ONE
Control output (potential-free contact)	POKO ONE
Interface digital	Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature	5...40 °C
Filling volume min.	8,2
Expansion volume	19,9
Cooling water connection	G3/4 male
Cooling water consumption at 15°C, flow 0°C	620 l/h
Cooling water differential pressure min.	1 bar
Cooling water pressure max.	6 bar
Power supply	400V 3~ 50Hz

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
