FCC Flow Control Cube TURB

FCC Flow Control Cube TURB

类别: 泵技术
订货号 : 3601.0007.00

The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.

The flow measurement is carried out via a turbine flow meters (TURB) and can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).



Temperature range: -90 ... 250 °C

with calibration: -30 ... 95 °C

Calibration (factory-set): Water-Ethylene Glycol 50:50

Min. volume flow: 0,9 l/min

Max. volume flow: 95 l/min

Fluid connection: M38x1,5 male

Power supply: 90-240V 1~/2~ 50/60Hz

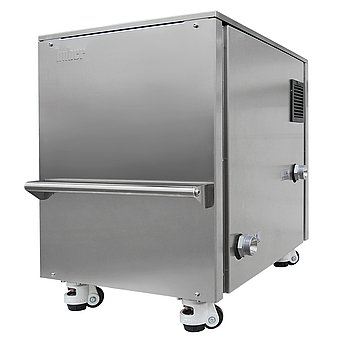

产品图片
