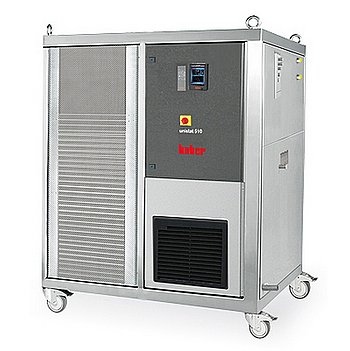

Unistat 615

Dynamic temperature control system / circulation thermostat

Model: Unistat 615 Group: 4 Order No.: 1074.0004.01 E-class: 32-09-01-17

This model is also available with natural refrigerant

Functions Technical data Downloads Accessories Warranty extension

Performance Characteristics

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time.
Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

Performance features Unistat 615 Dynamic temperature control system / circulation thermostat

Functions overview

Precise and reproducible temperature control results

Fastest heating and cooling rates

Wide temperature ranges with no fluid change

Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation

Adaptive temperature control, self-optimising

Efficient circulation pump

2 x USB (Host and Device), Ethernet and RS232 interfaces

Efficient operation saves working time and operating costs

Proven functionality for the process industry

E-grade "Professional" included

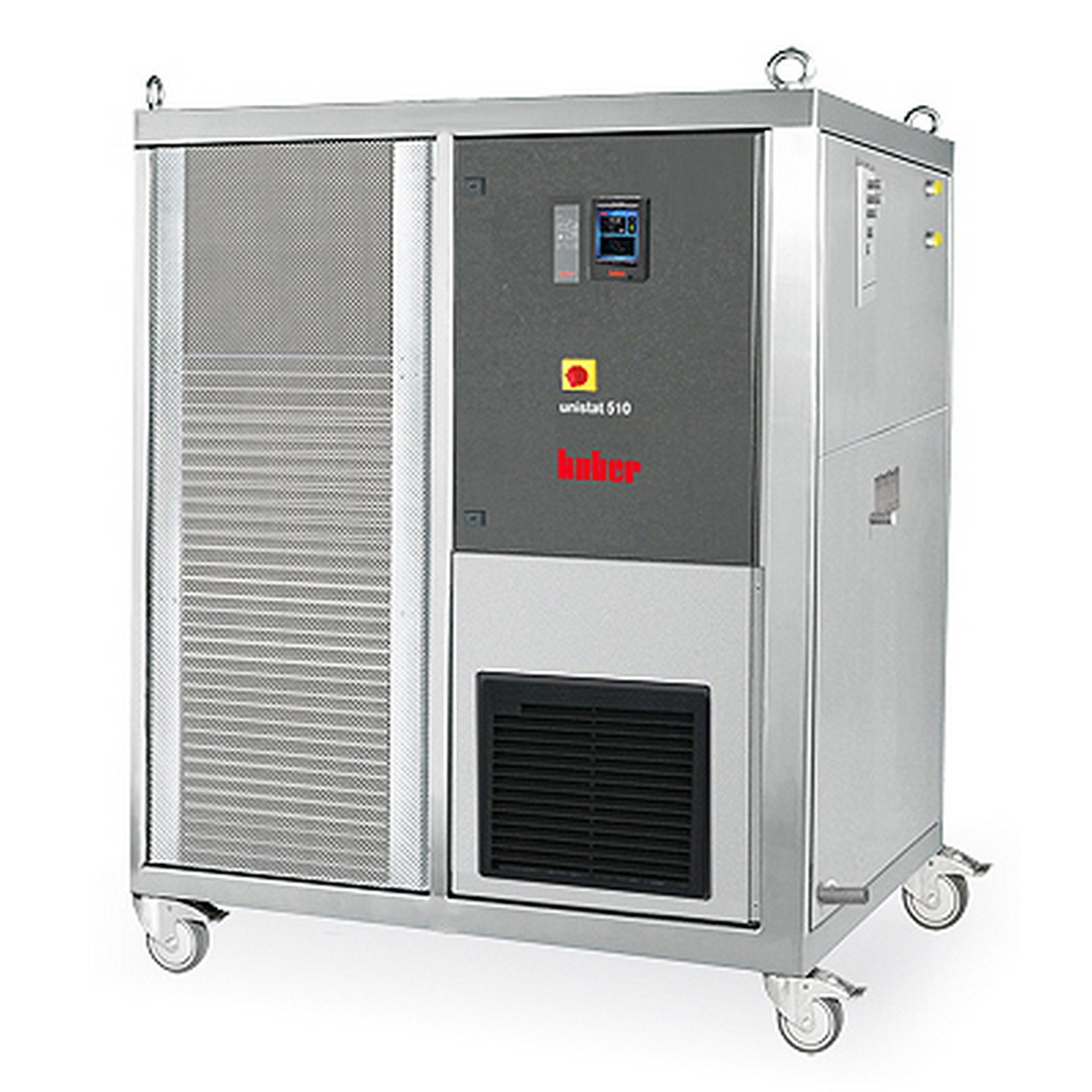

Product impressions

Controller

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Conroller Unistat 615 Dynamic temperature control system / circulation thermostat

Temperature range	-60...200
Temperature stability	±0,01
Display resolution	0,01 K
Alarm message	optic, acoustic, relay
Controller	Pilot ONE
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	1290 x 955 x 1537 mm
Weight, net	574 kg

Heating capacity

Cooling capacity

200	9,5
100	9,5
20	9,5
0	9,5
-20	8
-40	4,6
-60	1,2
°C	kW

Refrigeration machine

air-cooled, CFC- and HCFC-free

Refrigerant 1st stage

R-452A (A1, H280)

Refrigerant quantity 1st stage

5,2 kg

Delivery capacity pressure pump max.	82 l/min; 1,5
Pump connection	M30x1,5 AG male
Max. permissible viscosity	50 mm²/s
Pump speed adjustable	Yes
Pump type	magnetically coupled, stainless steel
Pump characteristics	Pressure pump, variable speed, magnetically coupled

External sensor connection	Pt100
Control input	ECS ONE
Control output (potential-free contact)	POKO ONE
Interface digital	Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature	5...40 °C
Filling volume min.	5,65
Expansion volume	26,5
Power supply	400V 3~ 50Hz
Current consumption max.	30,5
Fuse	3x32A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
