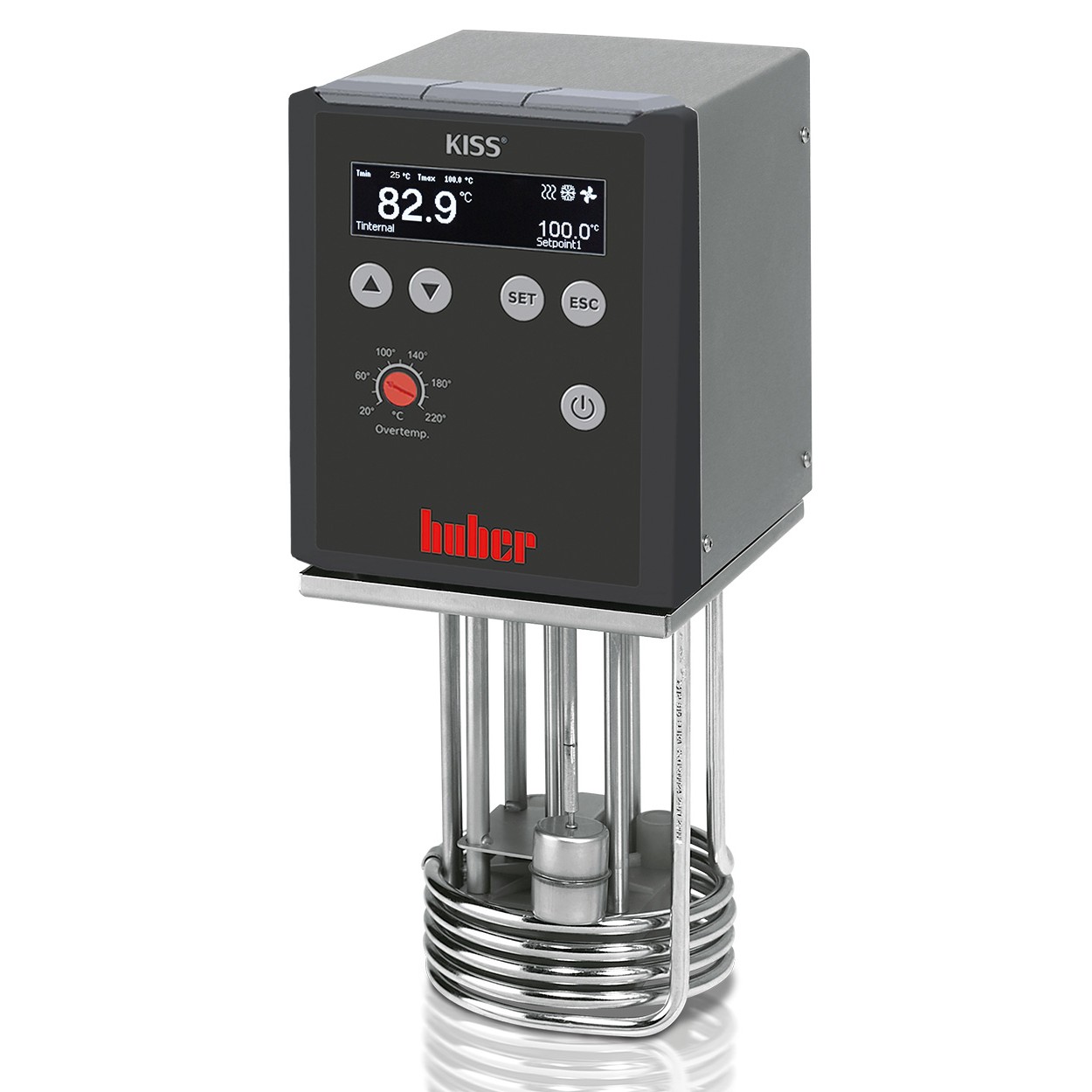

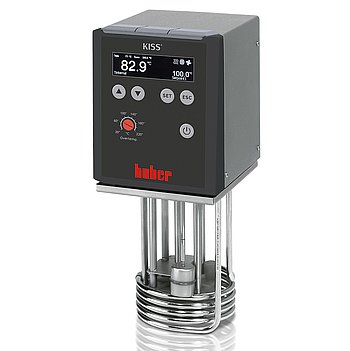

KISS E

Immersion thermostat

Model: KISS E Group: 1 Order No.: 2035.0012.98 E-class: 32-09-01-14

Functions Technical data Downloads Accessories Warranty extension

Performance Characteristics

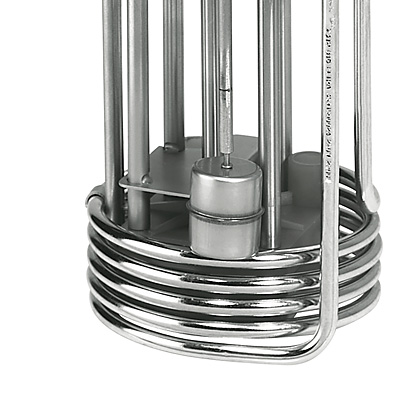

Immersion thermostats are suitable for controlling the temperature of any bath as the screw clamp allows the thermostats to be easily mounted on different vessels. Minus temperatures are achieved in combination with a refrigerated bath or immersion cooler. All models are fitted with a powerful pressure/suction pump and meet the requirements of Safety Class III (FL) for use with flammable fluids. A pump adapter for external temperature control and cooling coils for a cooling water connection are available as accessories.

Functions overview

KISS temperature controller

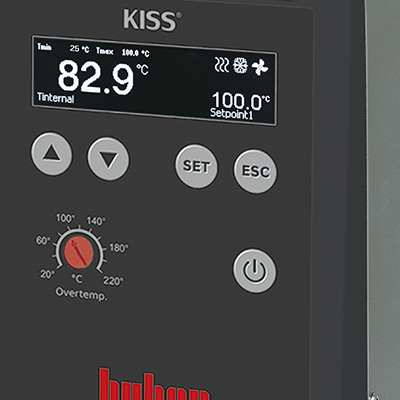

Bright, large OLED display

Simple operation with menu navigation

Simultaneous display of setpoint, Tmin, Tmax and actual temperature

Status displays for pump, cooling and heating

Overtemperature and low level protection

Safety class III/FL (DIN 12876)

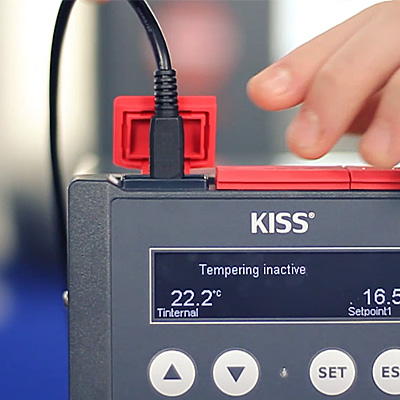

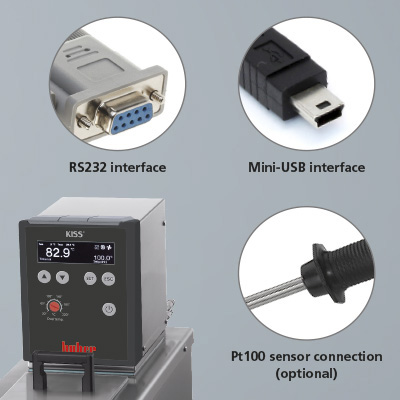

USB and RS232 interfaces

Autostart function for power failure

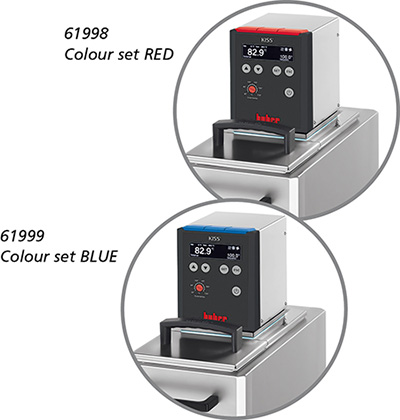

3 colour versions available: grey (standard), blue, red

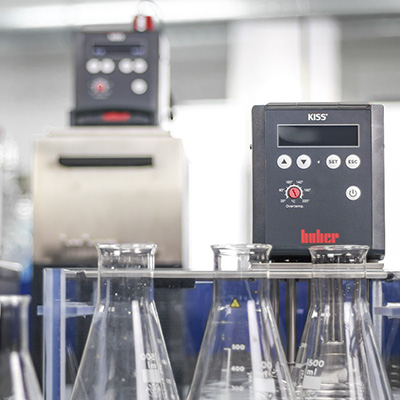

Product impressions

Controller

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Temperature range	25...200
with cooling unit	-30...200
with water cooling	20...200
Temperature stability	±0,05
Temperature display	OLED Display
Alarm message	optic, acoustic
Controller	KISS
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	132 x 163 x 312 mm
Weight, net	4 kg

Heating capacity

1,5 - 2,1

Delivery capacity pressure pump max.	14 l/min; 0,25
Delivery capacity suction pump max.	10,5 ; 0,17 bar
Pump connection	M16x1 AG male (Option, #19606)
Pump speed adjustable	no
Pump characteristics	Pressure and suction pump, speed not variable

Interface digital

USB (Device), RS232 Interface

Permissible ambient temperature	5...40 °C
Power supply	200-240V 1~/2~ 50/60Hz
Current consumption max.	10

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
