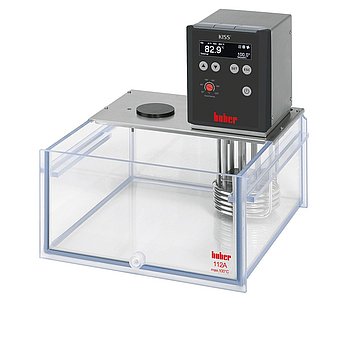

KISS 112A
Bath thermostat with a polycarbonate bath
Performance Characteristics
Heating circulation bath thermostats with baths made from polycarbonate or stainless steel are simple to use and are suitable for many applications such as: sample temperature control, analysis, materials testing or checking food. The units offer high temperature stability and are fitted with overtemperature and low level protection suitable for Safety Class III/FL (DIN 12876) for use with flammable fluids. A powerful pressure/suction pump ensures optimal circulation and temperature homogenity in the bath and also allows temperature control of externally attached applications using a pump adapter (accessory). The products are rounded off with a range of accessories including inserts, variable adjustable platforms, bath covers, probes as well as hoses, temperature control fluids and various adapters.
Functions overview
- KISS temperature controller
- Bright, large OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, Tmin, Tmax and actual temperature
- Status displays for pump, cooling and heating
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- USB and RS232 interfaces
- Autostart function for power failure
- 3 colour versions available: grey (standard), blue, red
Product impressions
Controller
The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
Read more
| Heating capacity | 1,5 - 2,1 |
| Delivery capacity pressure pump max. | 14 l/min; 0,25 |
| Delivery capacity suction pump max. | 10,5 ; 0,17 bar |
| Pump connection | M16x1 AG male (Option, #19606) |
| Pump speed adjustable | no |
| Pump characteristics | Pressure and suction pump, speed not variable |
| Interface digital | USB (Device), RS232 Interface |
| Permissible ambient temperature | 5...40 °C |
| Bath opening WxD/BD | 275 x 161 / 150 |
| Bath volume | 12 |
| Filling volume min. | 7,3 |
| Power supply | 200-240V 1~/2~ 50/60Hz |
| Current consumption max. | 10 |
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products.
The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
Accessories
PT100 Sensor connection for KISS
Drain valve
Ball valve M16x1
Cooling coil cpl.
Control cable RS232 (9 <> 9 pin), 3m
Adjustable base for 112A
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Hose MT-350-3-M16x1
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Insulated sleeving internal-Ø 42mm
Insulated sleeving/price per m D:15
Bath cover one piece 112A
Bath cover one piece 112A
Bath bridge 112A, 118A
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Heat transfer fluid P20.225/275.50
Heat transfer fluid P20.225/275.50
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.195/235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid MEG
Heat transfer fluid MEG
Adapter M16x1 f- M24x1,5 m
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Pump discharge pipe (for diverting flow in bath) for bath thermostats with KISS E, CC-E
Securing nut M16x1
Blank plug for M16x1
Micro hose connector NW 3.2 / M16x1
Pump adaptor cpl.
Test tube rack type 1 made of stainless steel
Test tube rack type 2 made of stainless steel
Test tube rack type 3 made of stainless steel
Test tube rack type 4 made of stainless steel
Algae protection 0,1 ltr
Factory calibration certificate – temperature stability to DIN 12876
Testing protocol FAT (Final Acceptance Test
Factory calibration certificate – absolute accuracy
Colour set RED for KISS Circulators
Colour set BLUE for KISS Circulators
