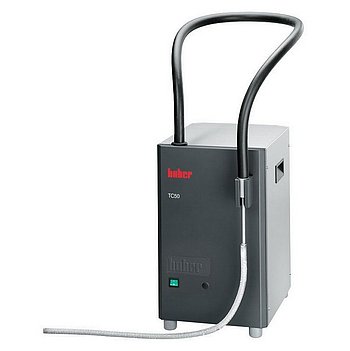

TC50-F

Immersion cooler

Model: TC50-F Group: 2 Order No.: 3004.0020.00

Functions Technical data Downloads Accessories Warranty extension

Performance Characteristics

The TC range of immersion coolers are a flexible solution for a variaty of cooling tasks. The devices are simple and universally used for rapid cooling of fluids. Typical applications include counter-cooling for heat circulation thermostats or replacement of dry ice. For many applications immersion coolers are also an environmentally friendly alternative to mains water cooling. The TC immersion coolers are suitable for unsupervised use, for cooling tasks which require continuous cooling or as a variant with temperature control and a Pt100 probe. The models with the type affix "E“ have an LED display with entry of nominal values and regulate with a precision of ±0.5 K. A spiral-shaped or flexible immersion cooling probe made out of stainless steel is available for all models so that fluids can be cooled in virtually all vessel types. The compact housing is made from high quality stainless steel, and is fitted with carrying grips.

Functions overview

Universal solution for many cooling tasks

Rapid cooling of fluids

Ideal for counter-cooling or as a replacement of dry ice

Compact, space-saving construction

Robust housing with carrying grips

High quality stainless steel immersion probe

Product impressions

Temperature range	-50...50
Controller	ON-OFF-Regler
Safety class	I / NFL
Dimensions (W x D x H)	260 x 330 x 415 mm
Weight, net	25 kg

Cooling capacity

0	0,3
-20	0,26
°C	kW

Refrigeration machine

air-cooled, natural refrigerant

Refrigerant 1st stage

R-290 (A3, H220)

Refrigerant quantity 1st stage

0,06 kg

Pump speed adjustable	no
Pump characteristics	no pump

Permissible ambient temperature	5...40 °C
Sound pressure level	60
Power supply	208-240V 1~/2~ 50/60Hz
Current consumption max.	3

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
