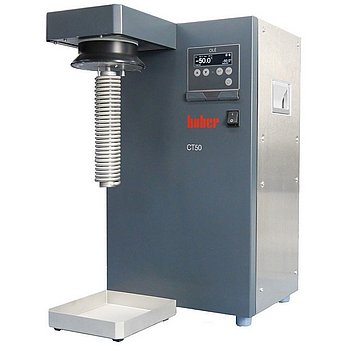

CT50 Single OLÉ

Cold Trap for Evaporation Tasks

Model: CT50 Single OLÉ Group: 3 Order No.: 3045.0003.98 E-class: 32-09-90-90

Functions Technical data Downloads Warranty extension

Performance Characteristics

The CT50 Single OLÉ cold trap means that evaporation tasks in the laboratory are now even easier and cheaper. It has been specially developed to offer highly efficient solvent recovery in laboratory conditions. The CT50 cold trap can be connected to rotary evaporators or any other application requiring low temperatures for solvent recovery.
The CT50 cold trap offers direct, rapid cooling to temperatures as low as -50°C as well as low operating costs. Its compact design takes up minimal space on the laboratory bench. Thanks to the natural refrigerant, the cold trap works in an environmentally friendly manner. It is also robust and durable due to the high-quality materials used in its manufacture. The evaporator is made of stainless steel.

Functions overview

Highly efficient solvent recovery

Operating temperatures as low as -50°C

Direct, rapid cooling with a high cooling rate

For rotary evaporators and other distillation equipment

Bright, large OLED display

Simple operation with menu navigation

USB and RS232 interfaces

Drip tray included

Glass accessory set also available (order no. # 505286)

Product impressions

Controller

The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Temperature range	-50...50
Temperature display	OLED Display
Alarm message	optic, acoustic
Controller	OLÉ
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	330 x 450 x 576 mm
Weight, net	32 kg

Cooling rate +20...-50°C	>= 4 min
Cooling rate +20...-45°C	>= 2,5 min
Refrigeration machine	air-cooled, natural refrigerant
Refrigerant 1st stage	R-290 (A3, H220)
Refrigerant quantity 1st stage	0,06 kg

Pump characteristics

no pump

Permissible ambient temperature	5...40 °C
Sound pressure level	59
Power supply	220-240V 1~/2~ 50/60Hz
Current consumption max.	5

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
