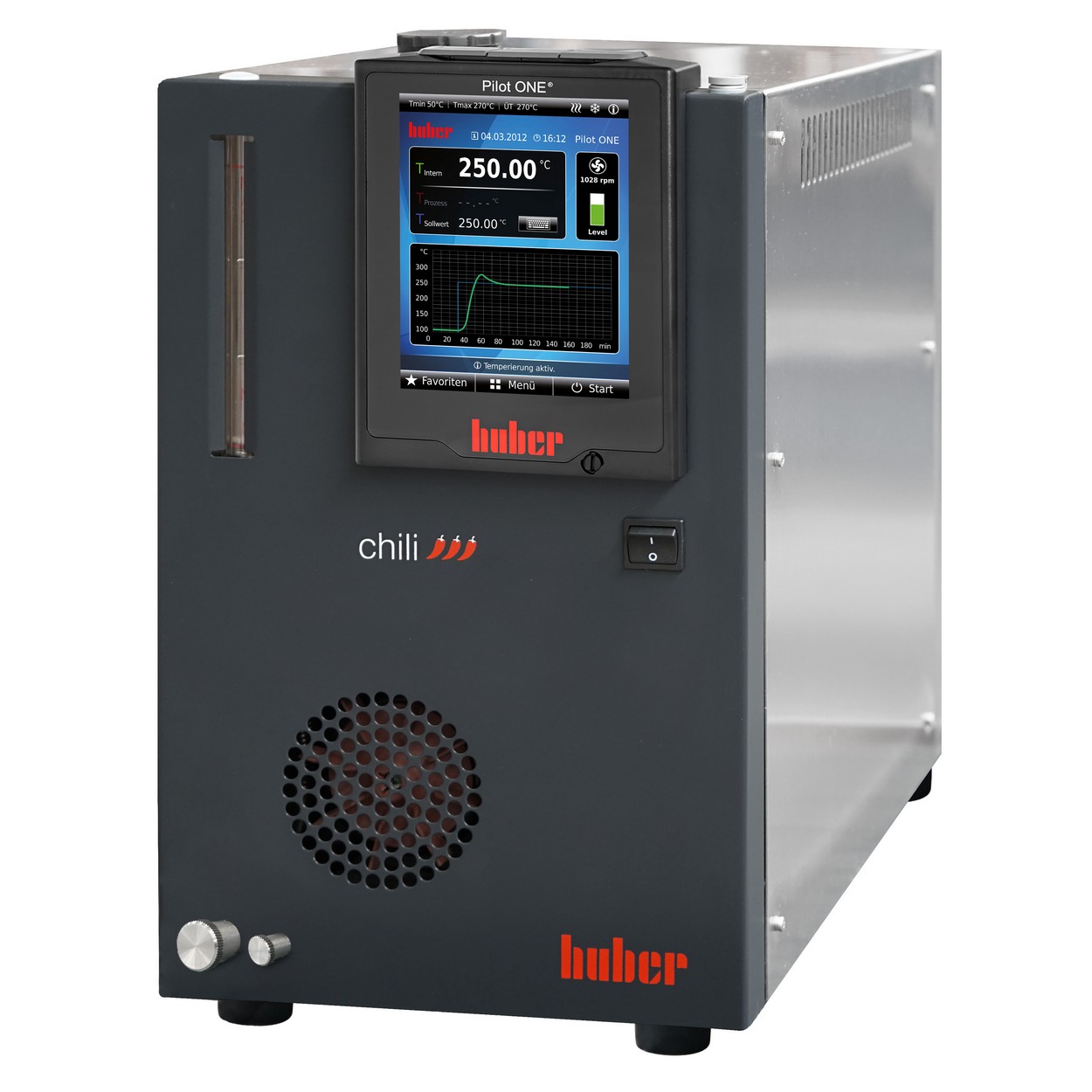

Chili

Dynamic temperature control system / circulation thermostat

Model: Chili Group: 35 Order No.: 1088.0001.01 E-class: 32-09-01-17

Functions Technical data Downloads Warranty extension

Performance Characteristics

Chili is the latest heating circulator for closed systems in the Unistat product family. The compact heating thermostat is equipped with the E-grade Professional as standard and convinces with excellent thermodynamic properties and a range of functions for the highest demands. Chili guarantees highly accurate, reproducible temperature control results with short heat-up times and wide temperature ranges without changing fluids. Like all Unistats, the Chili is equipped with the innovative Pilot ONE controller with 5.7" touch screen and convenient menu navigation.
The economically Unistat technology provides minimized operating costs and efficient energy management. A further advantage is the extended life-time of the thermofluid. The hydraulically sealed systems prevent the formation of oil vapours and oxidation. Chili is the smallest heating thermostat in the Huber product range that is approved for use with Marlotherm as a thermofluid. For controlled cooling, an external cooling coil (unregulated) is available as an optional accessory. Due to ist technical properties and low purchase price, Chili is ideally suited for distillation tasks in botanical extraction, for example.

Functions overview

Precise and reproducible temperature control results

Wide temperature ranges with no fluid change

Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation

Adaptive temperature control, self-optimising

2 x USB (Host and Device), Ethernet and RS232 interfaces

Efficient operation saves working time and operating costs

Proven functionality for the process industry

E-grade "Professional" included

For use with Marlotherm as thermofluid (closed systems)

Product impressions

Controller

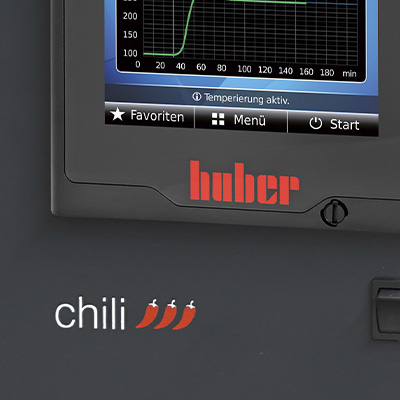

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Temperature range	65...300
Temperature stability	±0,02
Display resolution	0,01 K
Alarm message	optic, acoustic, relay
Controller	Pilot ONE
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	240 x 427 x 393 mm
Weight, net	23 kg

Heating capacity

2,7 - 3

Delivery capacity pressure pump max.	45 l/min; 0,9
Pump connection	M24x1,5 AG male
Max. permissible viscosity	50 mm²/s
Pump speed adjustable	Yes
Pump characteristics	Pressure pump, variable speed

External sensor connection	Pt100
Interface digital	Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature	5...40 °C
Filling volume min.	1,45
Expansion volume	2
Power supply	200-240V 1~/2~ 50/60Hz
Current consumption max.	15,5
Fuse	16 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
