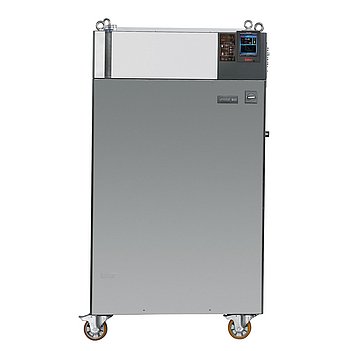

Unistat P920w
Dynamic temperature control system / circulation thermostat
Performance Characteristics
The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time.
Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.
Functions overview
- Precise and reproducible temperature control results
- Fastest heating and cooling rates
- Wide temperature ranges with no fluid change
- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Adaptive temperature control, self-optimising
- Efficient circulation pump
- 2 x USB (Host and Device), Ethernet and RS232 interfaces
- Efficient operation saves working time and operating costs
- Proven functionality for the process industry
- E-grade "Professional" included
Product impressions
Controller
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Read more
| Heating capacity | 12 | ||||||||||||||||||||
| Cooling capacity |
|
||||||||||||||||||||
| Refrigeration machine | water-cooled, CFC- and HCFC-free | ||||||||||||||||||||
| Refrigerant 1st stage | R-452A (A1, H280) | ||||||||||||||||||||
| Refrigerant quantity 1st stage | 4,55 kg | ||||||||||||||||||||
| Refrigerant 2nd stage | R-23 (A1, H280) | ||||||||||||||||||||
| Refrigerant quantity 2nd stage | 1,9 |
| Delivery capacity pressure pump max. | 191 l/min; 5,5 |
| Pump connection | M38x1,5 AG male |
| Max. permissible viscosity | 50 mm²/s |
| Pump speed adjustable | Yes |
| Pump type | magnetically coupled, stainless steel |
| Pump characteristics | Pressure pump, variable speed, magnetically coupled |
| External sensor connection | Pt100 |
| Control input | ECS ONE |
| Control output (potential-free contact) | POKO ONE |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Filling volume min. | 12 |
| Expansion volume | 29 |
| Cooling water connection | G3/4 male |
| Cooling water consumption at 15°C, flow 0°C | 730 l/h |
| Cooling water differential pressure min. | 1 bar |
| Cooling water pressure max. | 6 bar |
| Power supply | 400V 3~ 50Hz |
| Current consumption max. | 38 |
| Fuse | 3x40A |
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products.
The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
Accessories
External calibration bath Unical 700
Temperature sensor PT100, open, Ø 8 mm, 170 mm
Temperature sensor PT100, closed, Ø 8 mm, 400 mm
Temperature sensor PT100, closed, Ø 6 mm, 200 mm
Temperature sensor PT100, closed, Ø 6 mm, 180 mm
Temperature sensor PT100, M30x1.5, for fluid outlet or return
Temperature sensor PT100, M30x1.5, for fluid outlet or return, double
Ball valve, M30x1,5
Control panel extension cable for Pilot ONE
Control cable Unipump/ Unistat (3m)
Extension cable for temperature sensor
Wall bracket Pilot ONE
Table stand Pilot ONE
Mounting bracket for wall mounting of Pilot ONE
Hose K-260-1-M30x1,5
Hose K-260-1,5-M30x1,5
Hose K-260-2-M30x1,5
Hose K-260-3-M30x1,5
Hose MT-350-1,5-M30x1,5
Hose MT-350-1-M30x1,5
Hose MT-350-2-M30x1,5
Hose MT-350-3-M30x1,5
Hose MT-350-0,5-M30x1,5
Bath cover PTFE Unical 700, CAL 1-4, Unical 1
Bath cover PE Unical 700, CAL 1-4, Unical 1
Heat transfer fluid M90.055/170.02
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.055.03
Heat transfer fluid M80.055.03
Heat transfer fluid DW-Therm M90.200.02
Adapter M30x1,5 f- M38x1,5 m
Adapter M24x1,5 m - M30x1,5 f
Adapter M30x1,5 f - G1/2 m
Adapter M30x1,5 f - G1/2 f
Adapter M30x1,5 f - G3/8 m
Adapter M30x1,5 f - G3/4 f
Adapter M30x1,5 f - R 1 f
Welding end M30x1,5
Adapter M30x1,5 f - 3/4NPT m
Connection for pressure relief device
90° Adaptor M30x1,5 female - R1/2 male
Calibration bend M30x1,5 with sensor pocket
90° Adaptor M30x1,5 f - M30x1,5 m
Securing nut M30x1,5
Float switch in sight glass Unistat
Quick-disconnect adaptor M30x1,5
Quick-disconnect coupler M30x1,5
External pressure sensor M30x1,5
Manually adjustable bypass M30x1,5 with connection for manometer
Factory calibration certificate – temperature stability to DIN 12876
Testing protocol FAT (Final Acceptance Test
Factory calibration certificate – absolute accuracy
Profibus Gateway DP-V1 (external, for Pilot ONE)
POKO/ECS interface for units with Pilot ONE
Touchpen for Pilot ONE
E-grade Explore
E-grade OPC-UA
