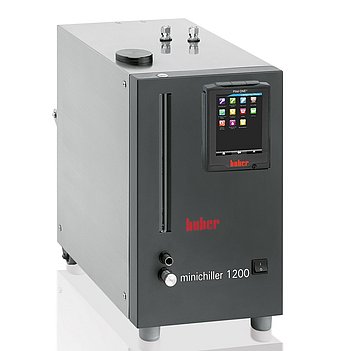

Minichiller 1200-H
Compact chillers
Performance Characteristics
The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.
Functions overview
- Environmentally-friendly, economic cooling solution
- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Precise temperature control
- Simple operation with menu navigation
- Robust stainless construction
- Reliable continuously operation with warning functions
- Easy to fill and empty
- High efficiency
- Bright, large OLED display
- USB and RS232 interfaces
Product impressions
Controller
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Read more
| Heating capacity | 1,6 - 2,1 | ||||||||||
| Cooling capacity |
|
||||||||||
| Refrigeration machine | air-cooled, natural refrigerant | ||||||||||
| Refrigerant 1st stage | R-290 (A3, H220) | ||||||||||
| Refrigerant quantity 1st stage | 0,18 kg |
| Delivery capacity pressure pump max. | 24 l/min; 0,7 |
| Delivery capacity suction pump max. | 18 ; 0,4 bar |
| Pump connection | M16x1 AG male |
| Pump speed adjustable | Yes |
| Pump type | Pressure- and suction pump |
| Pump characteristics | Pressure and suction pump, variable speed |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Filling volume min. | 2,8 |
| Expansion volume | 2,2 |
| Power supply | 208-240V 1~/2~ 50/60Hz |
| Current consumption max. | 12 |
| Fuse | 16 A |
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products.
The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
