BFT5

Beer Force Ageing Test Bath

Model: BFT5 Group: 3 Order No.: 2041.0001.01 E-class: 32-09-01-17

Functions Technical data Downloads Warranty extension

Performance Characteristics

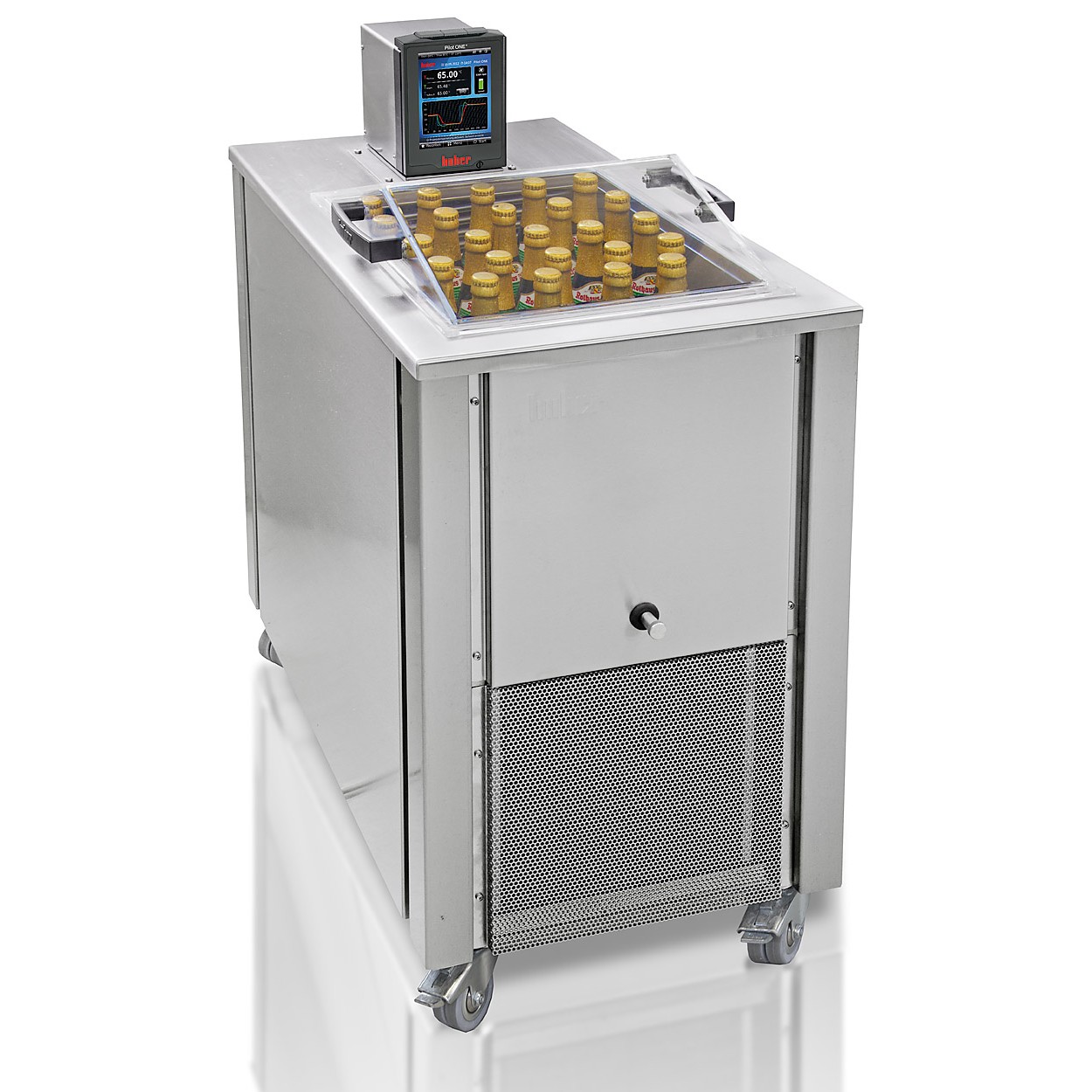

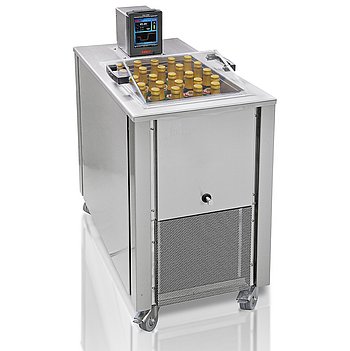

With the BFT5 we offer a special heating and cooling thermostat for the Beer Forcing test. The unit is fitted with a programmer for automatic temperature cycles. The changing the temperature between 0 and 60 °C in a cycle time of 24 hours artificial aging of the beer is achieved. The model meet the requirements of Safety Class III (FL). The housing and all parts which come into contact with the fluid are made out of high quality stainless steel.

Functions overview

Pilot ONE controller with Plug & Play technology

Precise temperature control

5.7“ touchscreen and comfortable menu navigation

Overtemperature and low level protection

Safety class III/FL (DIN 12876)

Powerful pressure/suction pump

Programmer with calendar and clock functions

RS232 interface and Pt100 connection

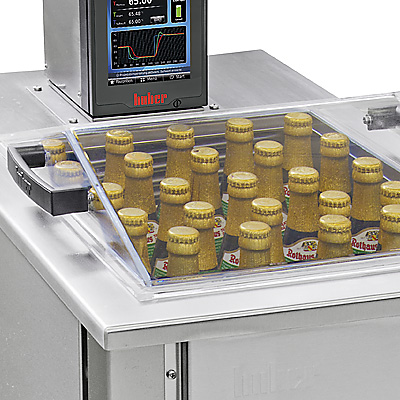

Product impressions

Controller

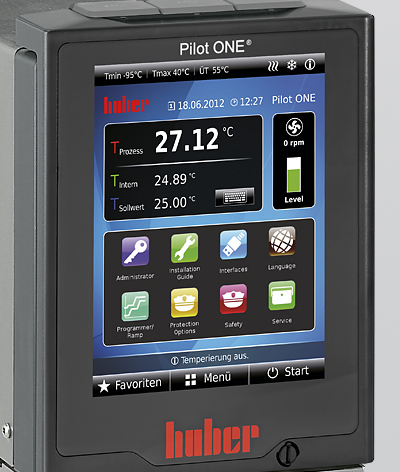

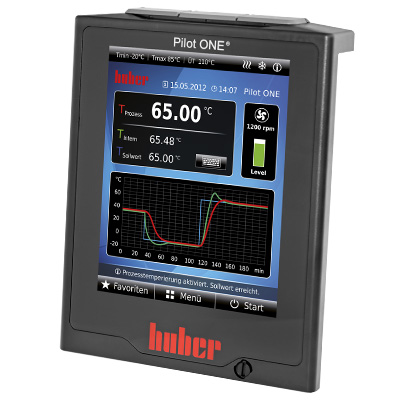

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Temperature range	-40...80
Temperature stability	±0,03
Controller	Pilot ONE
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	460 x 710 x 911 mm
Weight, net	76 kg

Heating capacity

Cooling capacity

20	1,2
0	0,9
-20	0,35
°C	kW

Refrigeration machine

air-cooled, CFC- and HCFC-free

Refrigerant 1st stage

R-452A (A1, H280)

Refrigerant quantity 1st stage

1,44 kg

Delivery capacity pressure pump max.	0 l/min; 0
Pump speed adjustable	Yes
Pump characteristics	Pressure and suction pump, variable speed

External sensor connection	Pt100
Interface digital	Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature	5...40 °C
Sound pressure level	31
Bath opening WxD/BD	350 x 410 / 270
Bath volume	40
Filling volume min.	8,5
Power supply	230V 1~ 50/60Hz
Current consumption max.	13
Fuse	16 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
