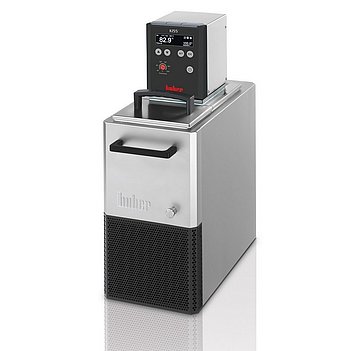

KISS K6s

Cooling bath thermostat

Model: KISS K6s Group: 2 Order No.: 2008.0044.98 E-class: 32-09-01-17

Functions Technical data Downloads Accessories Warranty extension

Performance Characteristics

Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfil the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.

Functions overview

KISS temperature controller

Bright, large OLED display

Simple operation with menu navigation

Simultaneous display of setpoint, Tmin, Tmax and actual temperature

Status displays for pump, cooling and heating

Overtemperature and low level protection

Safety class III/FL (DIN 12876)

USB and RS232 interfaces

Autostart function for power failure

3 colour versions available: grey (standard), blue, red

Product impressions

Controller

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Temperature range	-25...200
Temperature stability	±0,05
Temperature display	OLED Display
Alarm message	optic, acoustic
Controller	KISS
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	210 x 400 x 546 mm
Weight, net	25 kg

Heating capacity

1,6 - 2,1

Cooling capacity

20	0,26
0	0,21
-10	0,15
-20	0,05
°C	kW

Refrigeration machine

air-cooled, natural refrigerant

Refrigerant 1st stage

R-290 (A3, H220)

Refrigerant quantity 1st stage

0,047 kg

Delivery capacity pressure pump max.	14 l/min; 0,25
Delivery capacity suction pump max.	10,5 ; 0,17 bar
Pump connection	M16x1 AG male
Pump speed adjustable	no
Pump characteristics	Pressure and suction pump, speed not variable

Interface digital

USB (Device), RS232 Interface

Permissible ambient temperature	5...40 °C
Sound pressure level	57
Bath opening WxD/BD	140 x 120 / 150
Bath volume	4,5
Filling volume min.	2
Power supply	208-240V 1~/2~ 50/60Hz
Current consumption max.	10 + 1,3

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
