TC45E-F

TC45E-F

Immersion cooler with temperature control

Model: TC45E-F Group: 2 Order No.: 3003.0004.99 E-class: 32-09-90-90
Request now

Performance Characteristics

The TC range of immersion coolers are a flexible solution for a variaty of cooling tasks. The devices are simple and universally used for rapid cooling of fluids. Typical applications include counter-cooling for heat circulation thermostats or replacement of dry ice. For many applications immersion coolers are also an environmentally friendly alternative to mains water cooling. The TC immersion coolers are suitable for unsupervised use, for cooling tasks which require continuous cooling or as a variant with temperature control and a Pt100 probe. The models with the type affix "E“ have an LED display with entry of nominal values and regulate with a precision of ±0.5 K. A spiral-shaped or flexible immersion cooling probe made out of stainless steel is available for all models so that fluids can be cooled in virtually all vessel types. The compact housing is made from high quality stainless steel, and is fitted with carrying grips.

Functions overview

  • Universal solution for many cooling tasks
  • Rapid cooling of fluids
  • Ideal for counter-cooling or as a replacement of dry ice
  • LED temperature display
  • Easy operation with only three keys
  • Compact, space-saving construction
  • Robust housing with carrying grips
  • High quality stainless steel immersion probe
  • Temperature controller, stability ±0.5 °C
  • External Pt100 sensor included (# 6138)

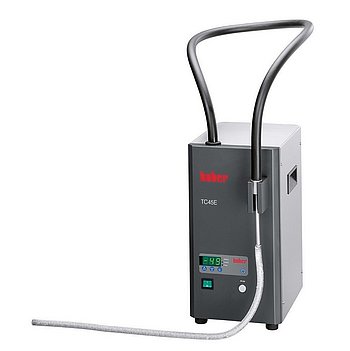

Product impressions

Temperature range -45...100 °C
Temperature stability ±0,5 K
Temperature display LED Display
Alarm message optic, acoustic
Controller MPC
Safety class I / NFL
Dimensions (W x D x H) 190 x 295 x 360 mm
Weight, net 16 kg

Cooling capacity
0 0,24
-20 0,18
-40 0,05

°C

kW

Refrigeration machine air-cooled, natural refrigerant
Refrigerant 1st stage R-290 (A3, H220)
Refrigerant quantity 1st stage 0,041 kg

Pump speed adjustable no
Pump characteristics no pump

External sensor connection Pt100

Permissible ambient temperature 5...40 °C
Sound pressure level 54 dB(A)
Power supply 208-240V 1~/2~ 50/60Hz
Current consumption max. 1,4 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.

Accessories

Extension cable for temperature sensor

Holder for immersion coolers

Heat transfer fluid M90.055/170.02

Heat transfer fluid M90.055/170.02

Heat transfer fluid M80.100/250.03

Heat transfer fluid M80.100/250.03

Heat transfer fluid P20.225/275.50

Heat transfer fluid P20.225/275.50

Heat transfer fluid M20.195/235.20

Heat transfer fluid M20.235.20

Heat transfer fluid M40.165/220.10

Heat transfer fluid M40.165/220.10

Heat transfer fluid M60.115/200.05

Heat transfer fluid M60.115/200.05

Heat transfer fluid M80.055.03

Heat transfer fluid M80.055.03

Heat transfer fluid MEG

Heat transfer fluid MEG

Factory calibration certificate – temperature stability to DIN 12876

Testing protocol FAT (Final Acceptance Test

Factory calibration certificate – absolute accuracy
